Reversible Direction Vibratory Plate Ammann APR 3520 DE

Reversible vibratory plate Ammann APR 40/60 DE

Catalogue number: APR 3520 DE
Availability:  Discontinued product
Shipping time:  n/ai No shipping information for the product.
This product is no longer available (discontinued)

Are you looking for a substitute product? Contact us and we will suggest you the most suitable alternative.
Comments: 0
Add comment
Catalogue number: APR 40/60 DE
Gross price
9 875,67 €
7 178,91 €
Net price: 5 836,51 €
Availability:  Available for order
Shipping time:  ~7 daysi The shipping time for products is indicative and subject to change.

Applies to working days from the moment of accepting the order for processing.
Delivery price (in Poland): on request
Warranty: 3 years
Reversible vibratory plate Ammann APR 40/60 DE
Gross price
9 875,67 €7 178,91 €

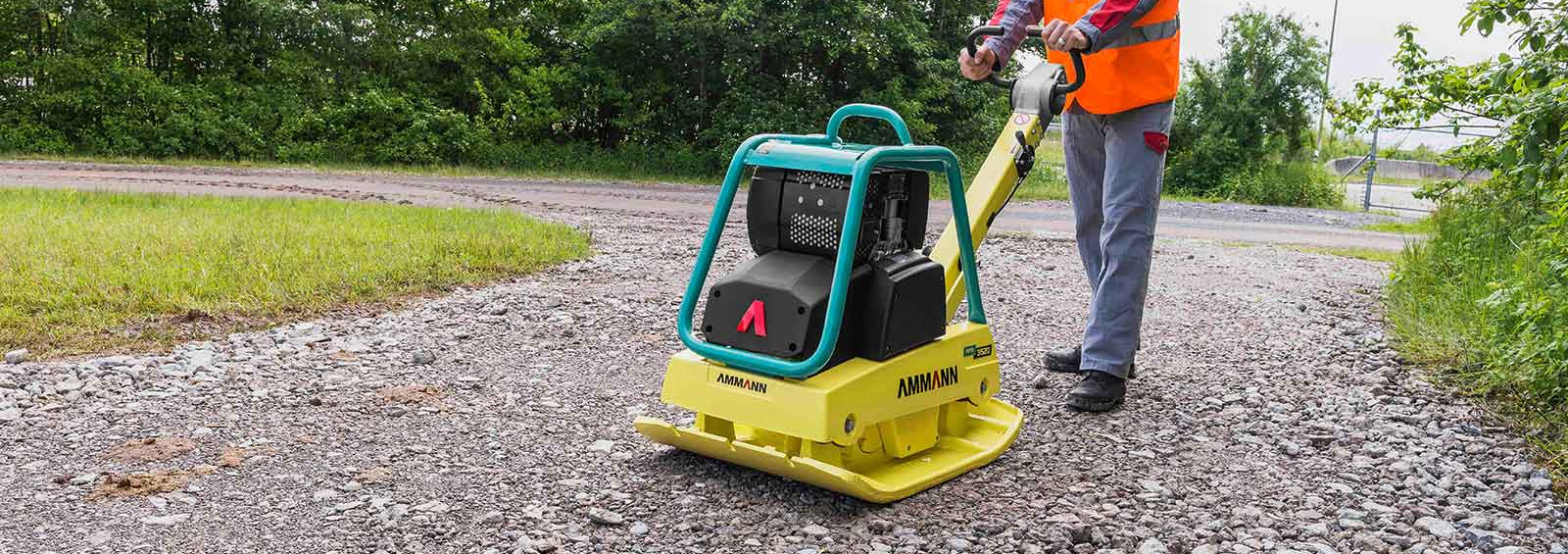

Ammann APR 3520 DE

The Ammann APR 3520 reversible plate compactor has excellent features, with a working width from 45 cm to 60 cm. The machine is often chosen by contractors working with paving slabs up to 10 cm thick. The optional vibrating rubber mat prevents damage during the compaction process. When working on other surfaces and in other applications, the vibratory plate is characterized by user-friendly features and properties specific to all Ammann vibratory plates.

Variant description: Hatz 1B30 diesel engine, engine power 6.2 HP, electric start

Technical characteristics

Compaction depth max.
50 cm
Maximum slant in each direction
Fuel tank capacity
5 l
Fuel consumption
1,3 l/h
286 kg
Length x width x height
860 x 600 x 780 mm
Plate length
410 mm
Plate width
600 mm
Engine model & manufacturer
Hatz 1B 30
65 Hz
Engine power
4,6 kW / 6,2 KM
Surface capacity
936 m²/h
Advance travel
0 – 26 m/min
Centrifugal force
38 kN
Engine type
Combustion (diesel)


  • User-friendly, vibration-damping folding handle for easy transport,
  • Smooth, variable, hydrostatic forward and backward movement, including the ability to vibrate "on-hand" in difficult terrain,
  • Easy, ergonomic operation,
  • Friendly two-way exciter aggregate with long intervals between technical inspections and long life,
  • Abrasion-resistant, self-cleaning base plate,
  • Well protected, solid centrifugal clutch with wear-resistant V-belt,
  • Stable safety frame with central lifting point,
  • Other options, such as a rubber mat, hour meter, transport wheels.

standard equipment

  • User-friendly handle for easy transport with the possibility of adaptation to the individual size of the operator,
  • Stable safety frame with central lifting point,
  • Strong and reliable,
  • 2-shaft exciter with long intervals between servicing,
  • Well protected, solid centrifugal clutch with wear-resistant V-belt,
  • Electric start.

Additional equipment

  • Vulcollan mat for use when working on cobblestones,
  • Hour meter,
  • 3-year extended warranty.
