Reversible Direction Vibratory Plate Ammann APH 5030 D

Ammann
Compare
Product unavailable

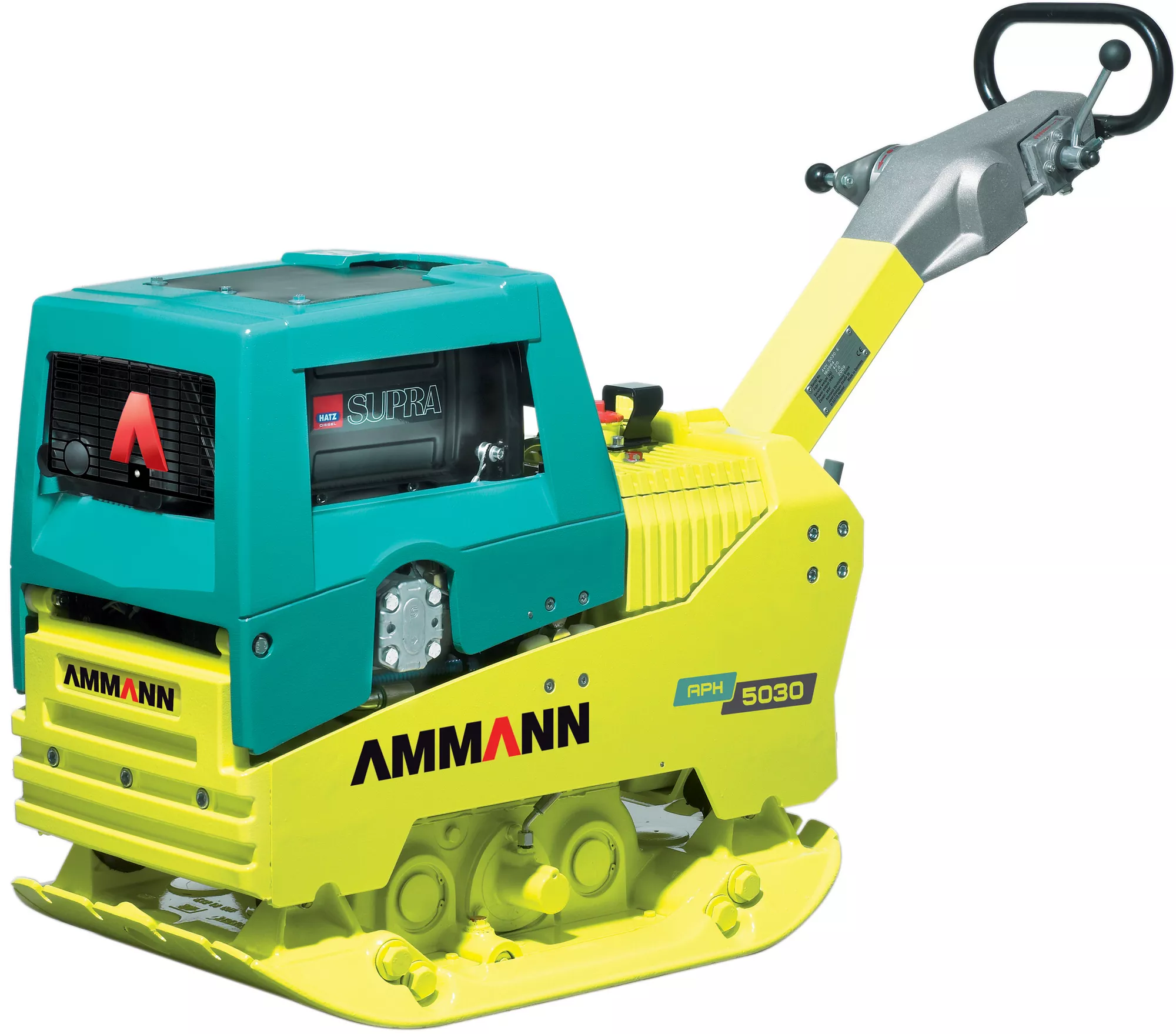

Reversible Direction Vibratory Plate Ammann APH 5030 D
Reversible Direction Vibratory Plate Ammann APH 5030 D
Catalogue number: APH 5030 D
This product is no longer available (discontinued)

Are you looking for a substitute product? Contact us and we will suggest you the most suitable alternative.
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.

Technical characteristics

Weight
396 kg
Machine length
900 mm
Base plate length
450 mm
Compaction depth max.
70 cm
Vibration frequency max.
65 Hz
Maximum slant in each direction
30o
Operating engine performance at 2700 rpm
9.4 kM / 7 kW
Fuel tank capacity
5 l
Surface capacity
594 m2/h
Surface with extended plate
792 m2/h / 990 m2/h

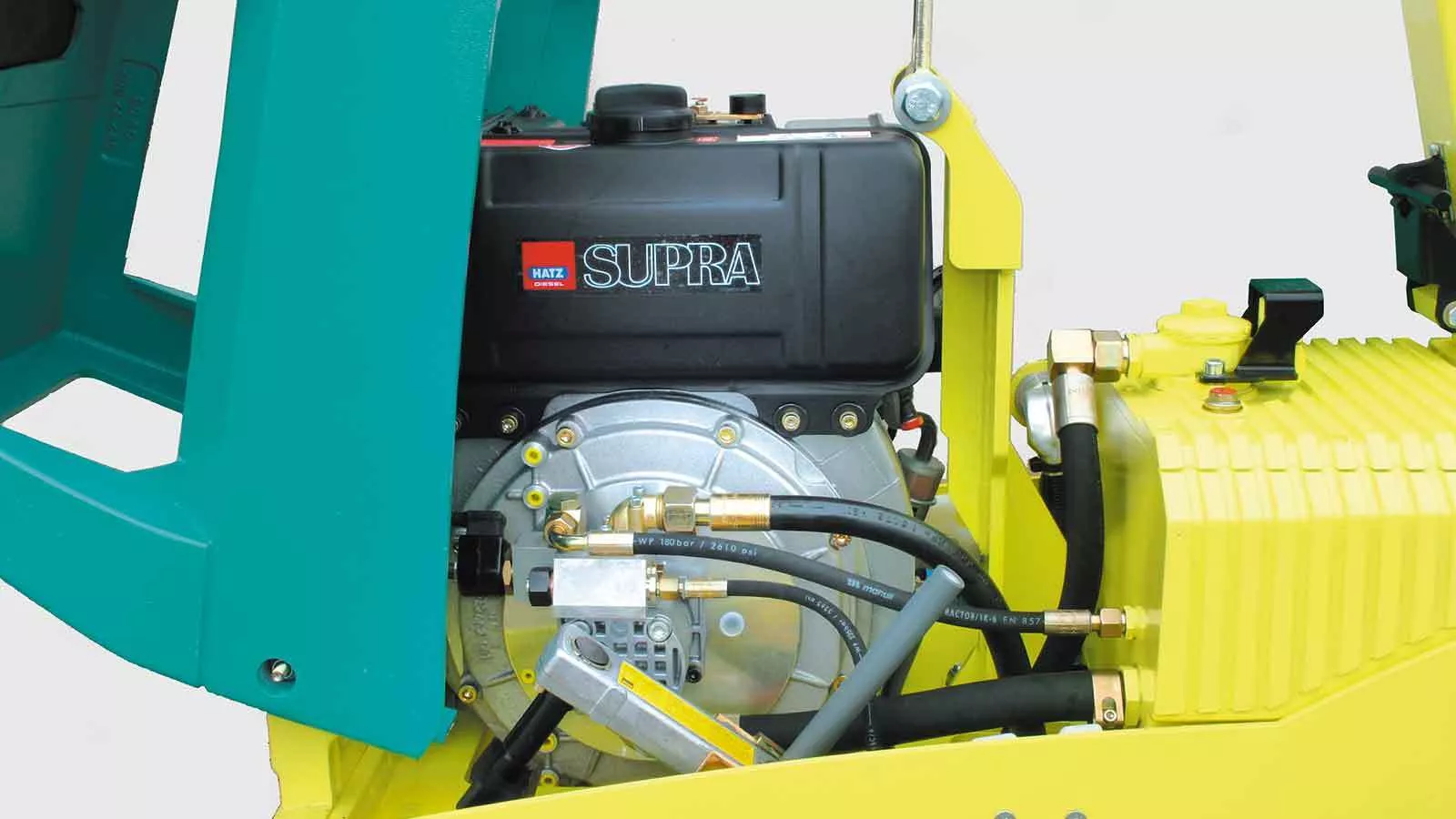

Engine
Hatz Supra 1D50S
Centrifugal force (max.)
50 kN
Machine width
450 mm
Machine width with extend plates
600 / 750 mm
Speed
28 m/min
Fuel
Diesel
Machine height
775 mm
Gradeability
36 %
Fuel consumption
1.7 l/h
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
