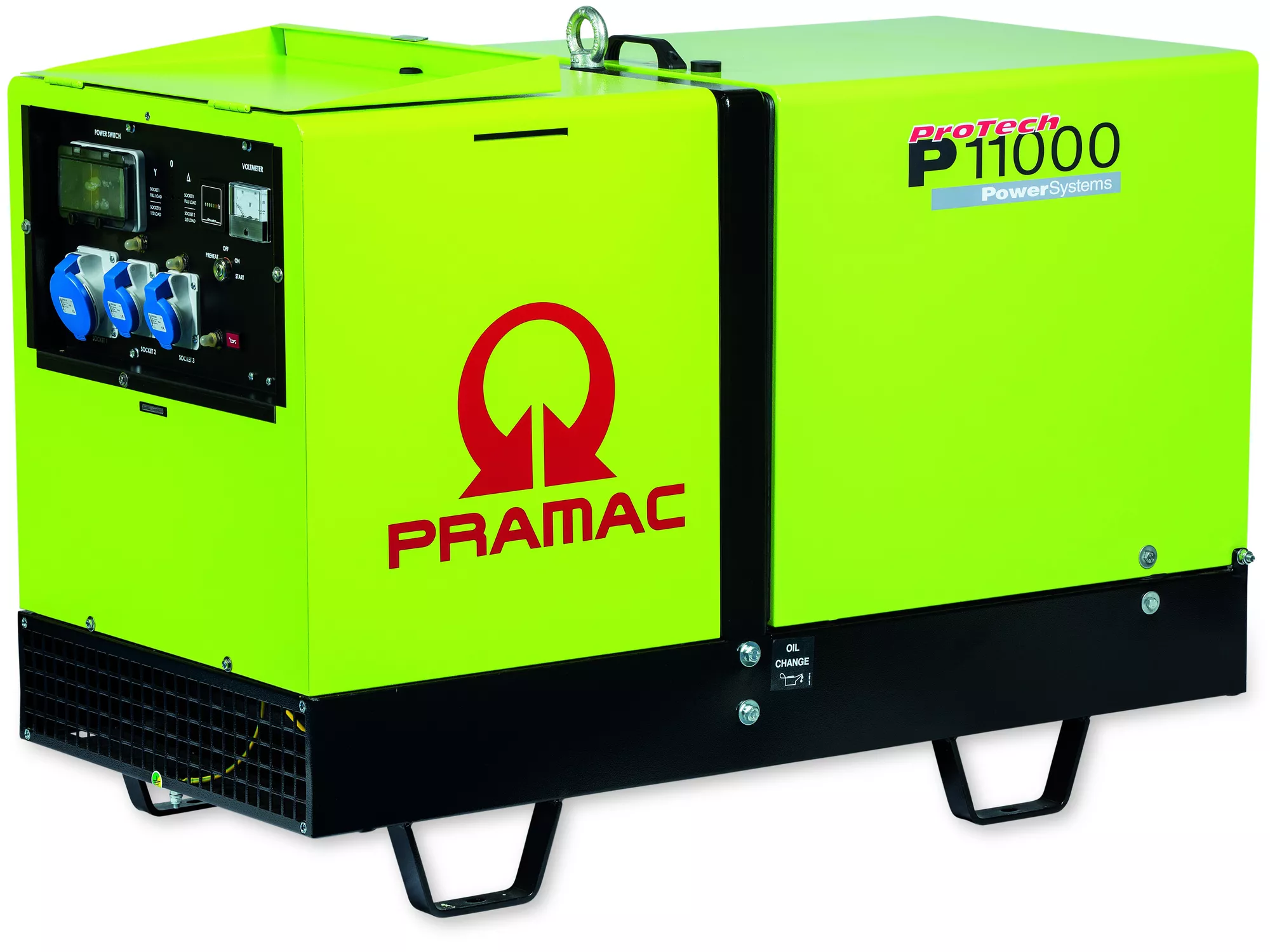

Three phase power generator unit Pramac P11000
Catalogue number: PF113TY4000
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.Variant description: Voltage 400 V (three-phase)
Technical characteristics
bieguny
2
Sound pressure
68 dB(A)
Sound Power
96 dB(A)
work time
9 h (at 75% load) / 7 h (at 100% load)
Power points
1x 2P+T CEE 230V 16A IP44, 1x 2P+T CEE 230V 32A IP44, 1x 3P+N+T CEE 400V 16A IP44
Voltage
400 V (three-phase)
Frequency
50 Hz
Insulation class
H
Resistance class
IP 23
Fuel
Diesel
Engine displacement
854 cm³
Cooling system capacity
0.9 l
Lubrication system capacity
3.8 l
Engine model & manufacturer
Yanmar 3TNV70-HGE
Speed control
Mechanical
Voltage regulator
Transformator
Start
Electric
Engine type
Combustion (diesel)
Power factor
0.9 cos ϕ
Fuel consumption
3.05 l/h (at load 75%) / 3.97 l/h (at load 100%)
Maximum power
6,6 kVA (singlephase) / 10,8 kVA (triphase)
Continuous output
6 kVA (singlephase) / 10 kVA (triphase)
Fuel tank capacity
24 l
Length x width x height
1400 x 650 x 975 mm
Weight
325 kg
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
