Single phase power generator unit Chicago Pneumatic CPPG 5
Catalogue number: 8170023118
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.

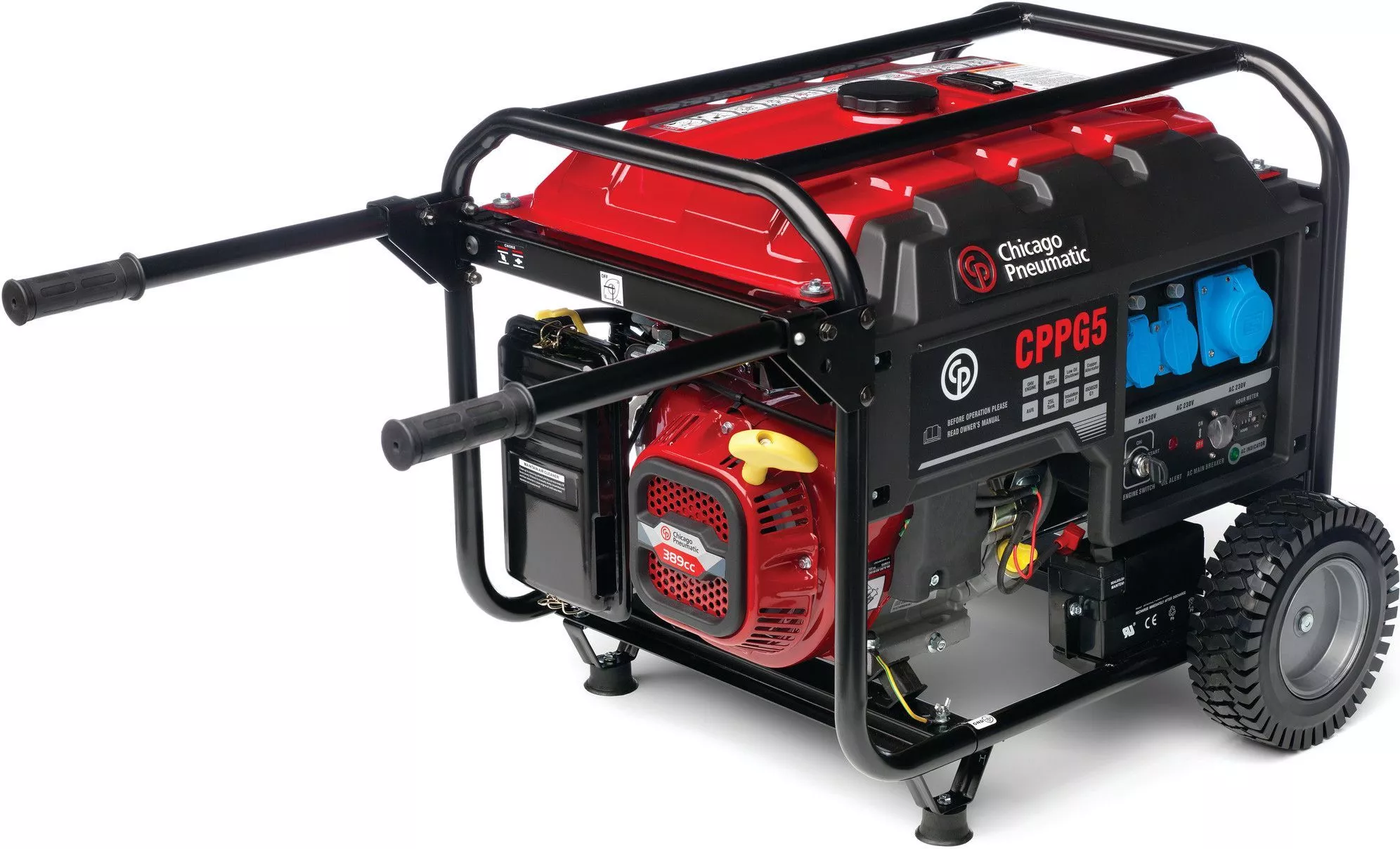

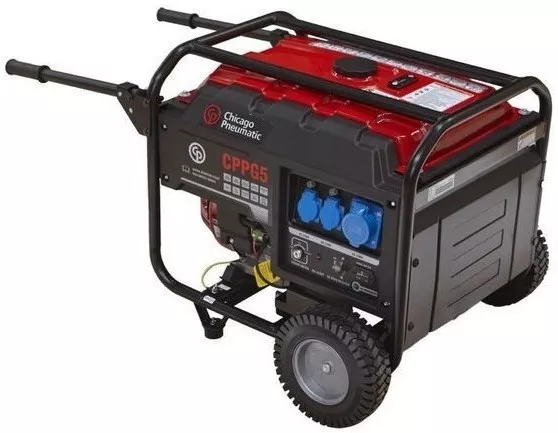

Chicago Pneumatic CPPG 5

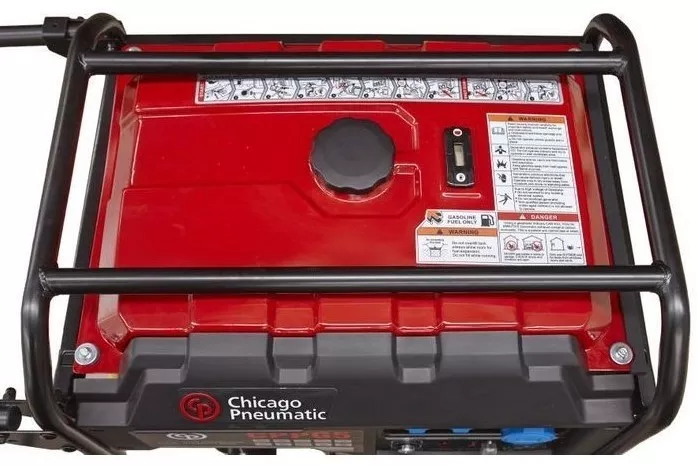

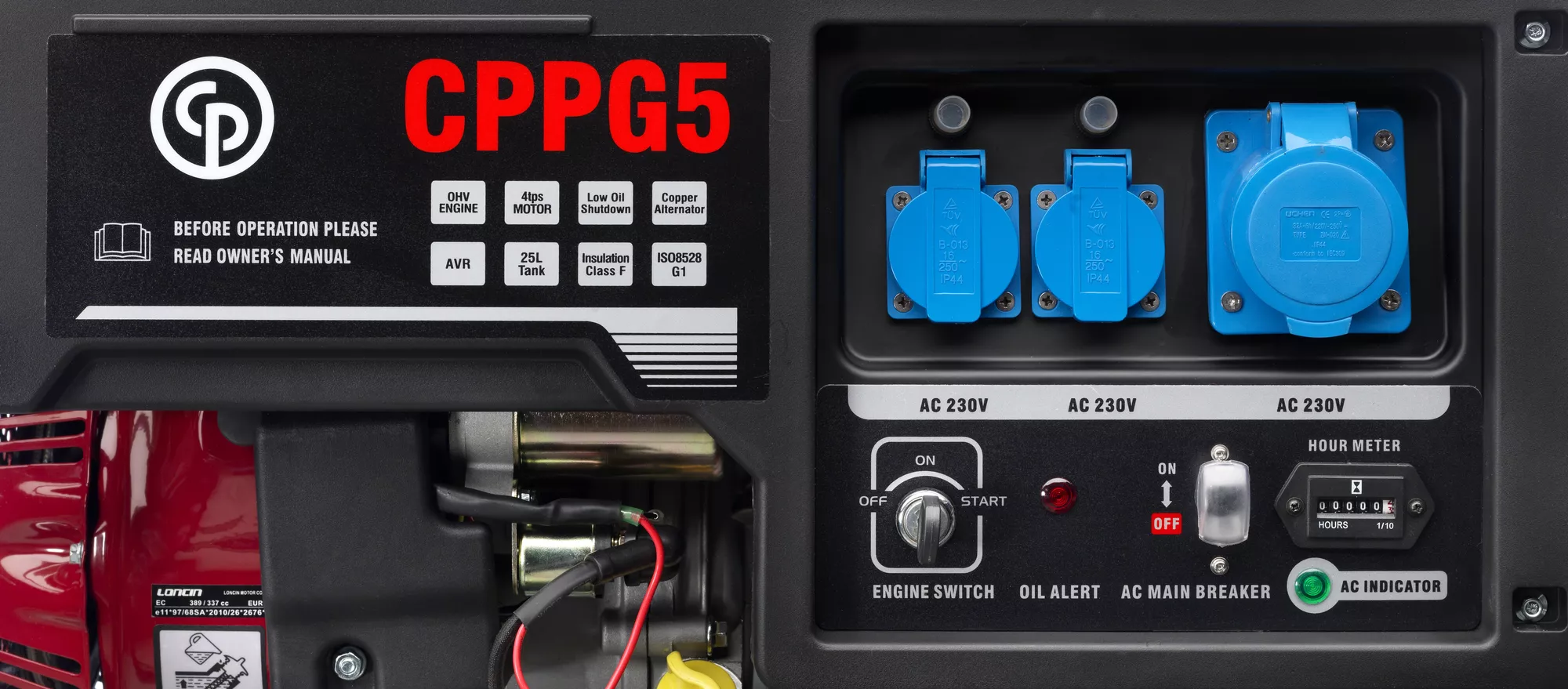

The new Chicago Pneumatic engine has been designed specifically for the gasoline-powered CPPG series, based on thorough research and testing. The engine is CE compliant and meets the most stringent CP quality requirements. The large fuel tank provides users with longer work time without a break to refuel. The design of the tank has been strengthened to protect it from damage that can cause a leak. The simple control panel also has alarm functions to alert you when the oil level is low so that the most important components are well protected. An electric starter enables quick start-up of the device. The sockets are covered and placed in a recess for additional protection. Automatic Voltage Regulation (AVR) ensures reliable and constant power. Stable voltage protects the generator and powered tools - output power fluctuations that degrade performance are eliminated.
Variant description: Single phase version
Technical characteristics
Voltage
230 V
Power points
2x 230 V (16A) + 1x 230 V (32A)
Continuous output 1 ~
5 kW
Max. output for 1 ~
5,5 kW
Frequency
50 Hz
work time
10 h
Engine power
9,6 kW / 13 KM
Fuel
Petrol
Start
Manual / Electric
Power factor
1 cos ϕ
Fuel tank capacity
25 l
Weight
79 kg
Equipment
- Automatic AVR voltage regulation
- ELR residual current relay
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
