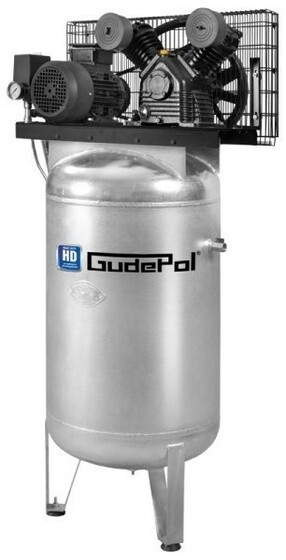

Piston compressor Gudepol HD 100/500/1200

Catalogue number: HD100-500-1200
EAN: 5907642181690
You get: 93 pts.iAccess to our Loyalty Program is available only on the Polish-language version of the store.
Gross price
2 829,95 €
2 292,26 €
Net price: 2 300,77 € 1 863,62 €
Lowest price 30 days before the discount: 2 276,52 € brutto
Availability:  Available for order
Shipping time:  7-14 daysi The shipping time for products is indicative and subject to change.

Applies to working days from the moment of accepting the order for processing.
Delivery price (in Poland): on request
Warranty: 2-3-10 years
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.
  • Cast iron, low-speed compressor pump HD design, high efficiency, adapted to industrial loads.
  • Electric motorHD system, high insulation class IP55 adapted for continuous operation by class S1.
  • Pressure switch (pressure switch) with thermal protection and no-load starting system – full protection of the electric motor, the soft start of the device.
  • Highly efficient cooling system – active pulley fan, inter-cylinder coolers.
  • Belt transmission with taper lock system – precise and comfortable drive transmission setting.
  • Tank100% zinc inside and outside, corrosion protection standard PN-EN ISO-1461.

Technical characteristics

Pressure maximum
10 bar
Number of cylinders
1200 rpm
Tank capacity
500 l
Compression levels
Suction performance
1200 l/min / 72 m³/h
Sound Power
80 dB(A)
Length x width x height
1900 x 600 x 1190 mm
Engine power
7,5 kW / 10,2 KM
400 V (triphase)
250 kg
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
