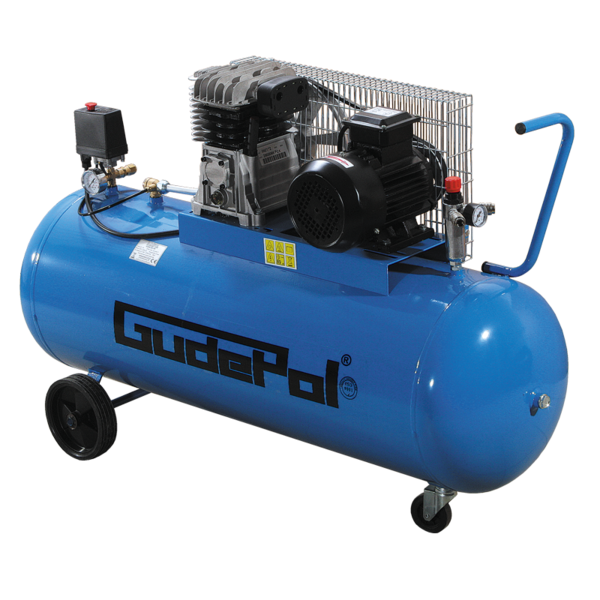

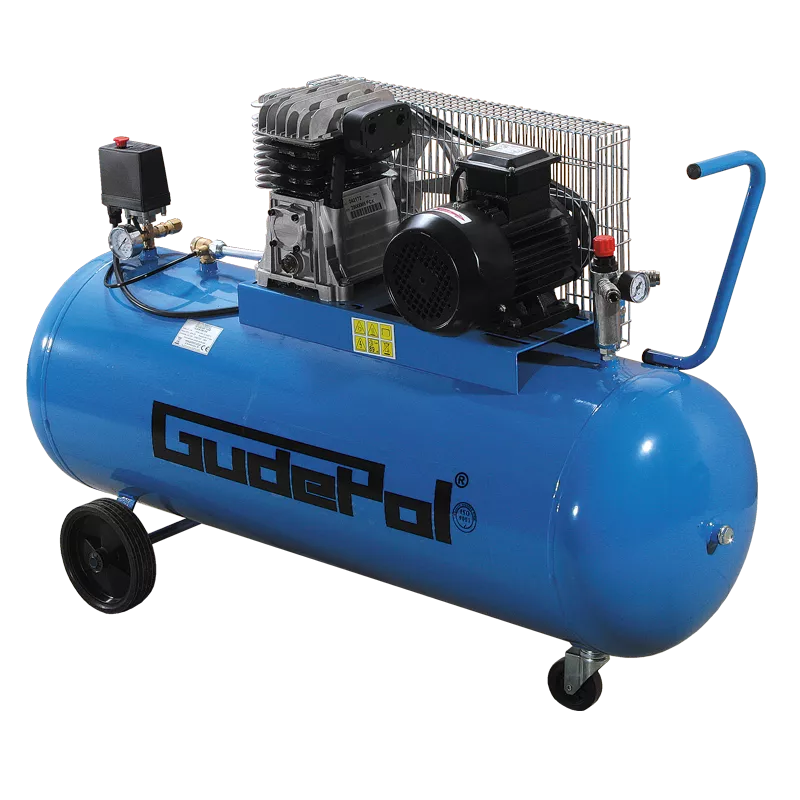

Piston compressor Gudepol GD 28-150-350 / 230V

Catalogue number: GD28-150-350/230

EAN: 5907642180105

You get: 33 pts.

Gross price

~~1 012,73 €~~

870,95 €

Net price: ~~823,36 €~~ 708,09 €

Lowest price 30 days before the discount: 864,97 € brutto

Availability: Available for order

Shipping time: 7-14 days

Delivery price (in Poland): on request

Warranty: 2 years

Comments: 0

Description

Variant description: Pressure max.10 bar, engine power 2,2 kW, weight 86 kg

Piston compressor with a single-stage belt drive.
Oil compressor, 2 pistons.
The compressor is equipped with an electric connection cable with a 230V / 50Hz power supply plug.
A filter with a regulator, pressure gauge and two quick couplings allows you to set the desired outlet pressure and connect two consumers.
Additional direct connection on the 1/2 "tank.
Compressor pump equipped with an exhaust air cooler.

A piston compressor in which the engine is connected via a belt transmission to a compressor aggregate, thanks to which the revolutions on the aggregate are lower.
Two pistons placed side by side in one cylinder, in-line, pumping air alternately.
The cast-iron cylinder guarantees long life and efficient cooling.
Sealing the pistons in the cylinders with three rings ensures low oiliness of the compressed air.
The modular valve plate ensures a constant flow of air due to continuous cooling via a suction airstream.
Easy control of the oil level through the sight glass.
The tank is equipped with wheels and a handle, which makes it easy to move around.
Compressor operation is controlled by a pressure switch ensuring its operation in the automat.
Automatic start at minimum pressure and switch off when maximum pressure is reached.
The compressor is equipped with a relief valve that protects the motor against overload and facilitates restarting the compressor.
Compressed air tank protected by a safety valve and equipped with a valve to facilitate drainage of the tank.

Pressure maximum

10 bar

Length

138 x 44 x 105 cm

Number of cylinders

Voltage

230 V

RPM

1580 rpm

Tank capacity

150 l

Compression levels

Suction performance

350 l/min / 21 m³/h

Sound Power

78 dB(A)

Engine power

2,2 kW / 3 KM

Weight

86 kg

All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
