Optical level Nivel System N32x (+ tripod, + laser stave)

Nivel System
Catalogue number: N32x [zestaw1]
EAN: 5908263350861
You get: 12 pts.iAccess to our Loyalty Program is available only on the Polish-language version of the store.
Installments 10x0%
Gross price
339,32 €
310,48 €
Net price: 275,87 € 252,42 €
Lowest price 30 days before the discount: 308,35 € brutto
Availability:  Available for order
Shipping time:  7-14 daysi The shipping time for products is indicative and subject to change.

Applies to working days from the moment of accepting the order for processing.
Delivery price (in Poland): on request
Warranty: 5 years
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.

Related products

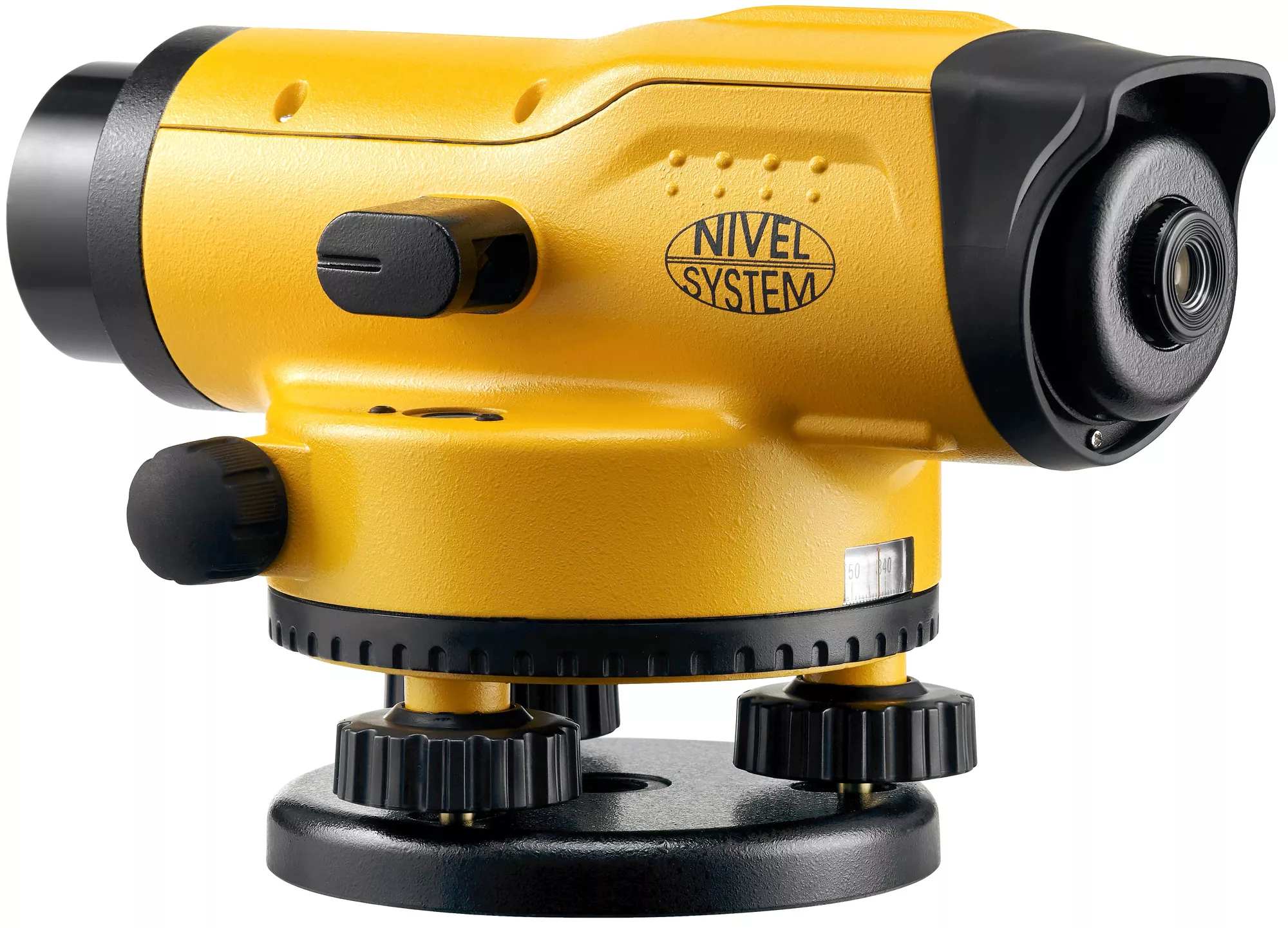

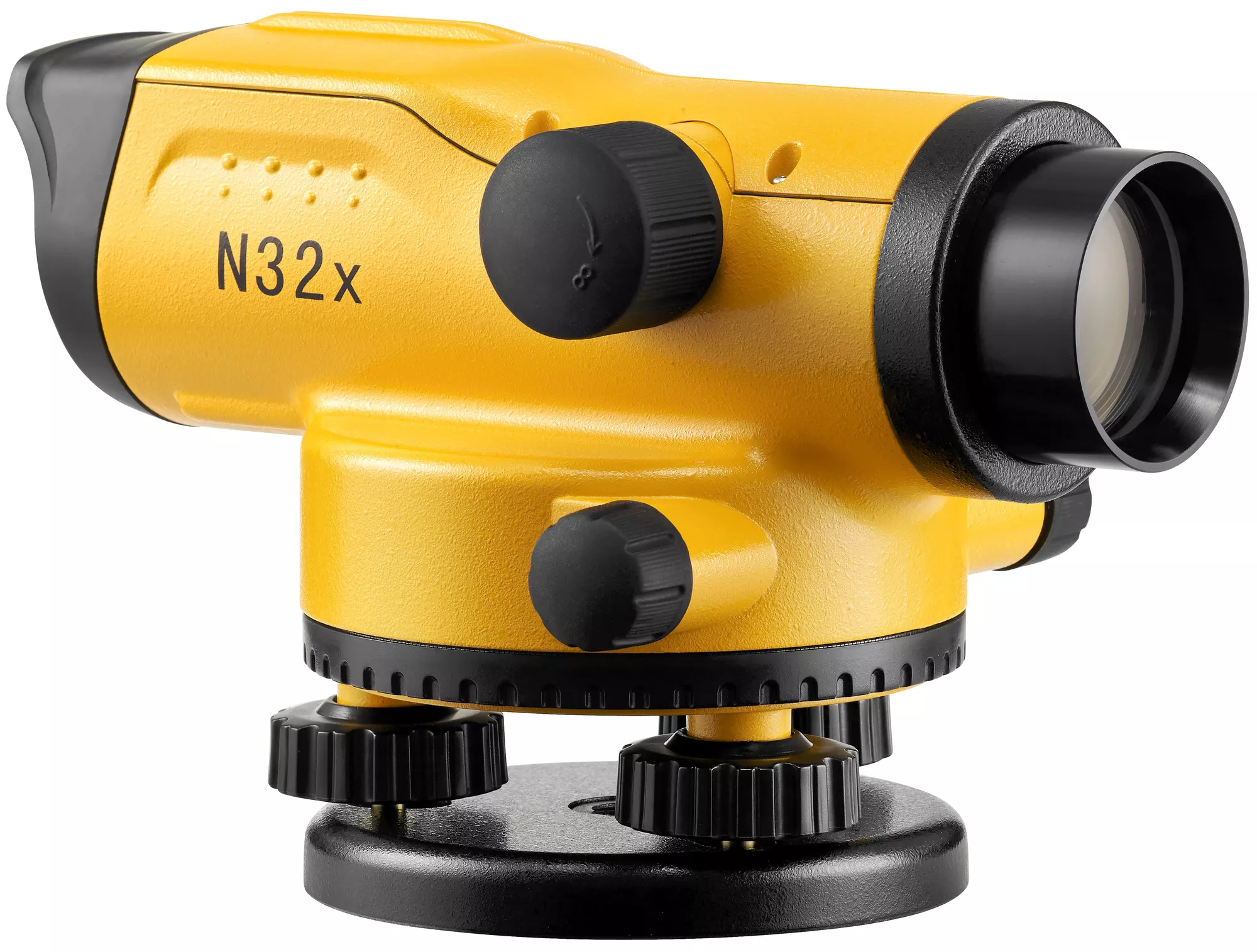

The N32x optical level by Nivel System is an instrument for exact measurement of height differences. The level is equipped with high-quality optics that guarantee a very clear image. The magnetic compensator allows measurements to be made in unstable areas, where a tripod with a level can be exposed to constant vibration. The instrument is resistant to dust and water and thus can be used in harsh conditions - during rain or in a dusty environment. The level is intended for surveyors, road builders, builders, archaeologists - for all specialists who require the highest precision and reliability from a measuring instrument.

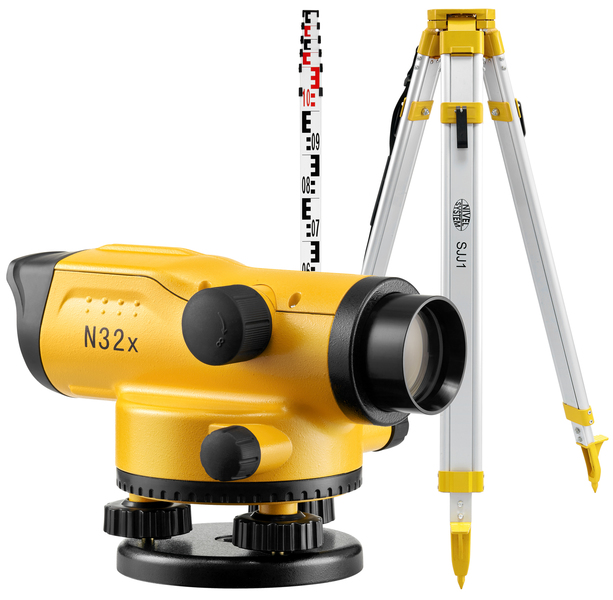

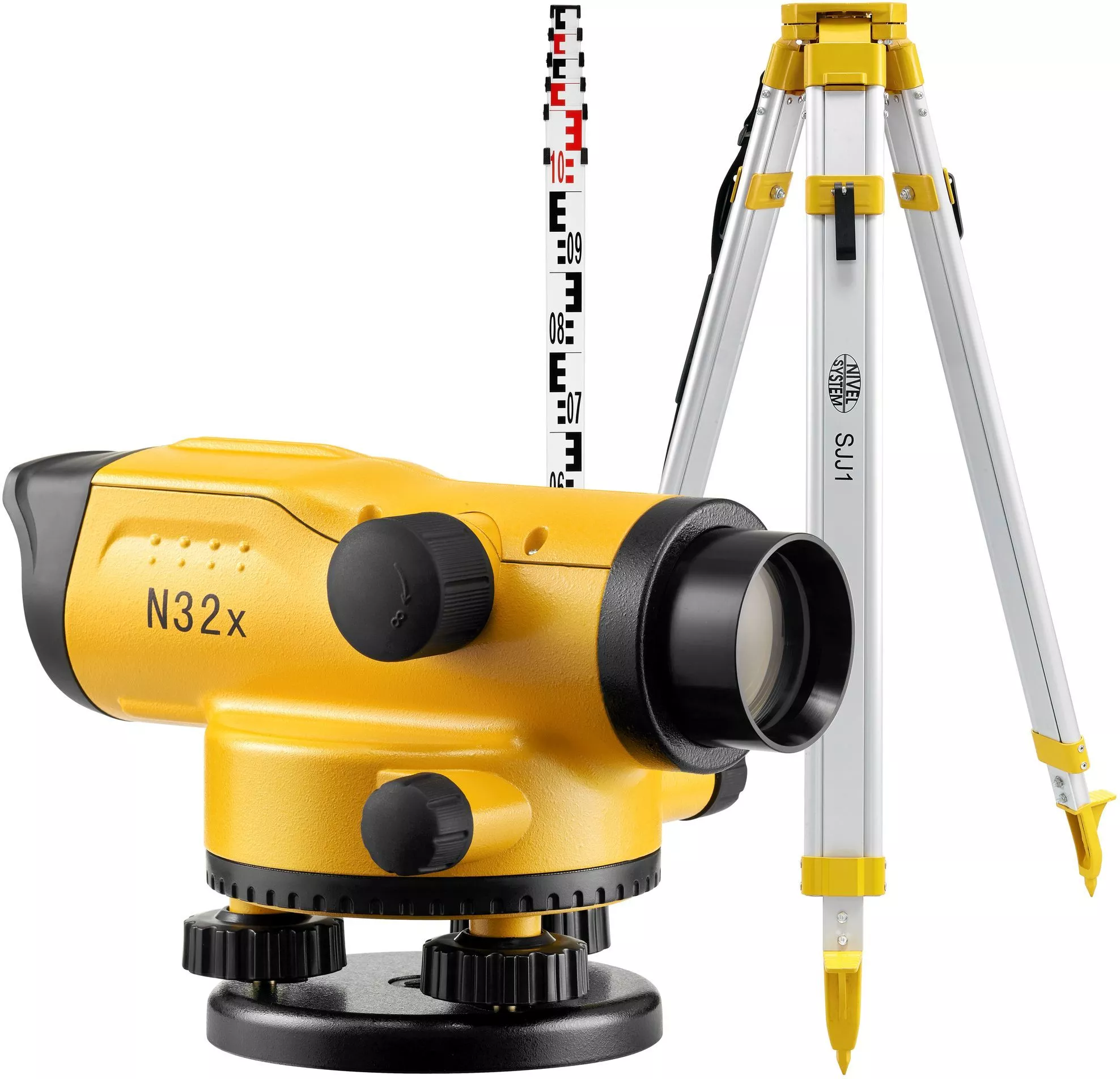

Variant description: 32x magnification, kit includes SJJ1 tripod and TS-50 laser stave

Technical characteristics

accuracy for 1km double-run levelling
1,5 mm/km
Telescope length
215 mm
Resistance class
IP66
minimum focal lenght
0,3 m
Straight
Field of view
1°20' (2,3 m)
Magnification
32x
Lens diameter
42 mm
Resolution capability
3,5''
Length x width x height
215 x 130 x 140 mm
Weight
1.75 kg (optical level), 6.25 kg (set)

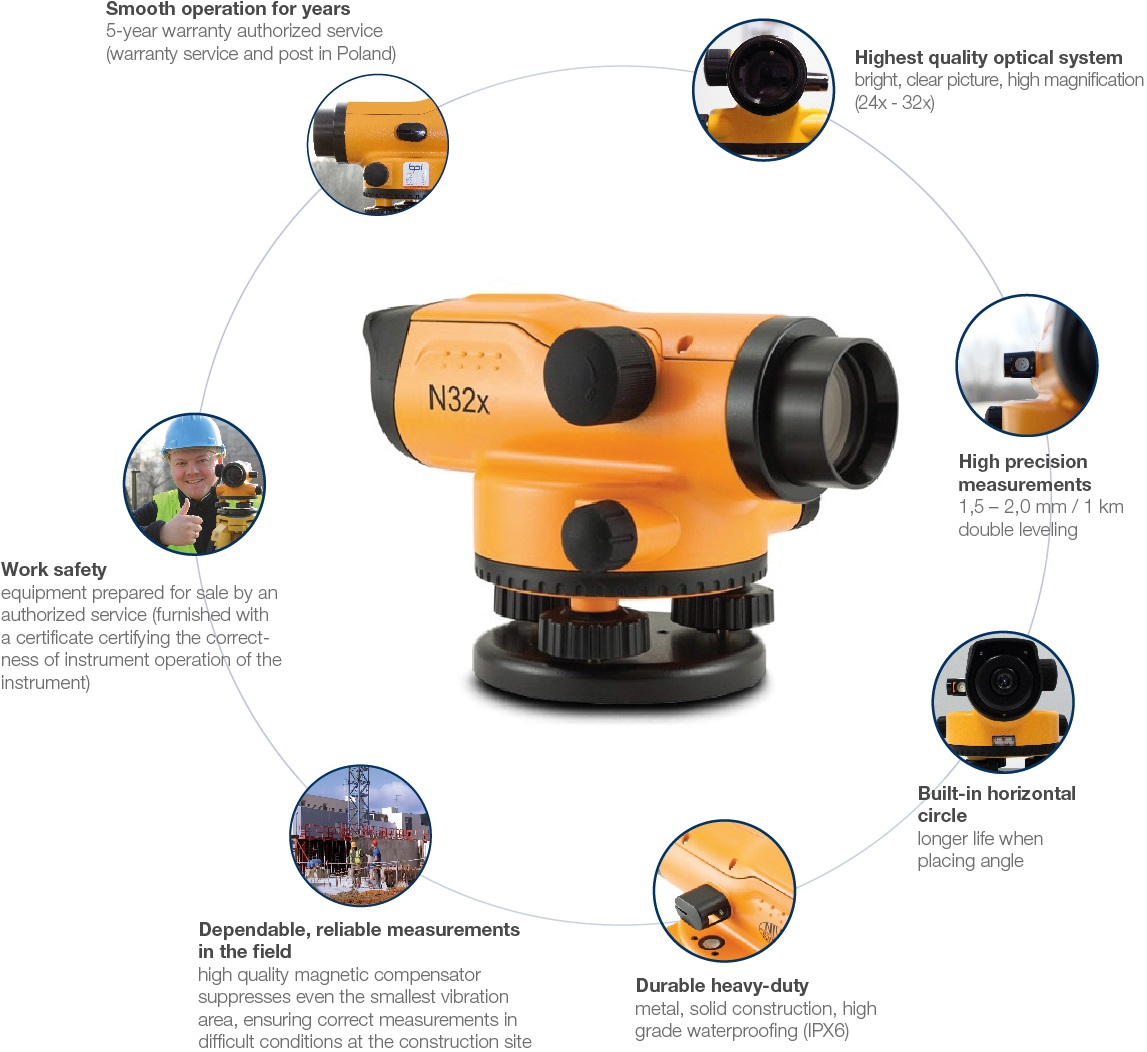

advantages

  • The highest precision of measurements thanks to the high quality of the optical system (telescope with 32x magnification), the level ensures accuracy of 2 mm per 1 km of double levelling and can be used both for construction tasks and for demanding geodetic measurements. The image in the telescope is clear and legible.
  • Resistant to harsh operating conditions, resistant to vibrations and shocks the built-in magnetic compensator automatically levels the instrument and thus facilitates work in places with unstable and vibrating surfaces (e.g. on a construction site, near heavy machinery), the equipment has a high water standard and dustproof (IP66).
  • At a minimum distance from the staff the equipment is adapted to work with a minimum target of 0.3 m in length, which allows levelling the area close to the station without having to change it.
  • Ease of use the rangeless horizontal wheel slider allows you to precisely aim the level at the staff, while the vial with mirror allows easy and quick levelling of the instrument.
  • Stable and reliable the metal housing and high-quality components of the level ensure trouble-free operation even in severe field conditions.
  • Proven and reliable equipment measuring equipment used in the construction site is subjected to the highest endurance tests. Working both in dusty rooms and in severe field conditions, surrounded by heavy machines, it should ensure stable operation - correct measurements. This is evidenced by the fact that Nivel System levels of the Nx series are equipped with the highest quality components before sale each one undergoes thorough certified tests, and their quality is guaranteed by one of the most extended warranty period on the market, five years.

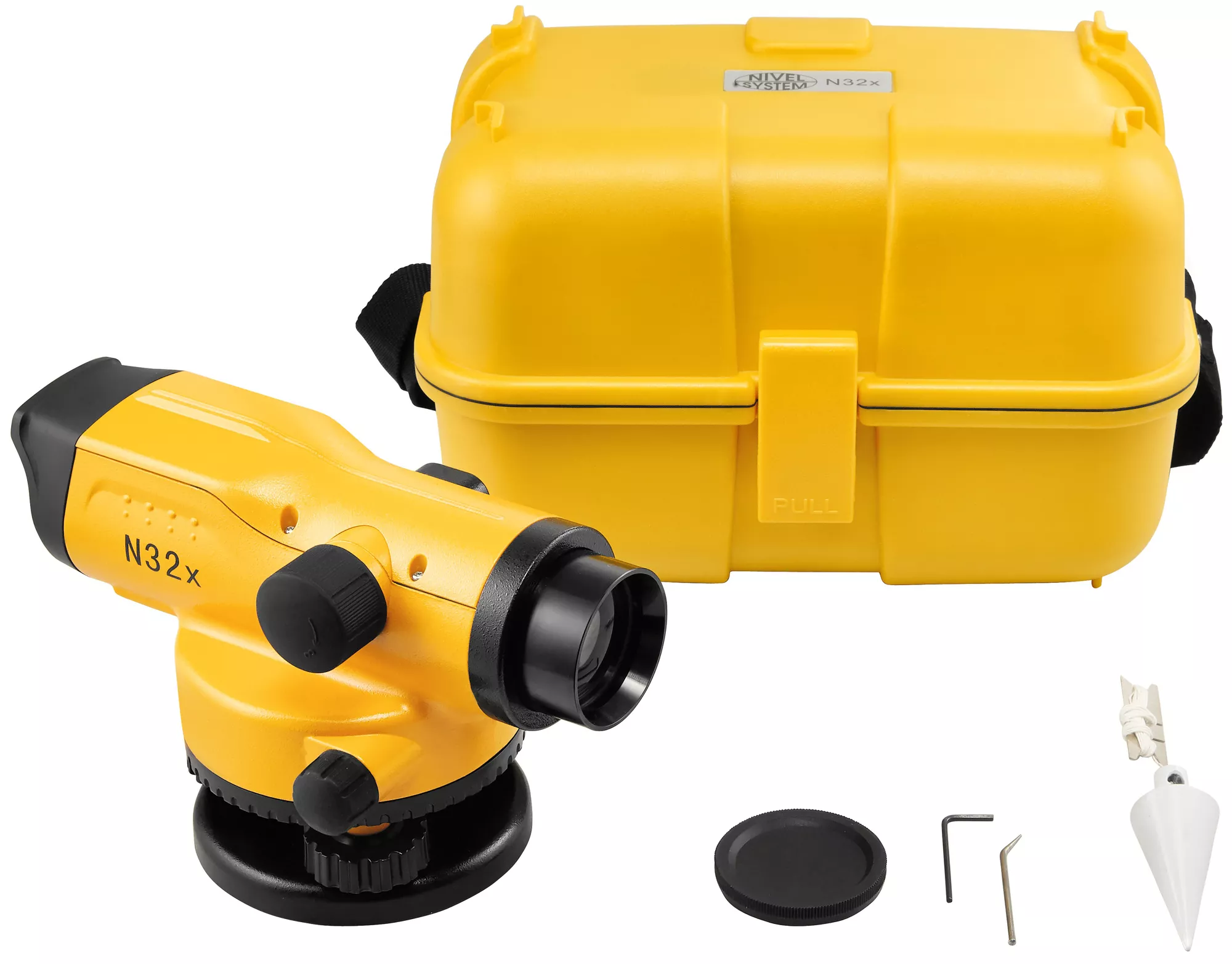

Set contains



  • Nivel System N32x optical level,
  • Telescope curtain,
  • Rectifying needle,
  • String riser

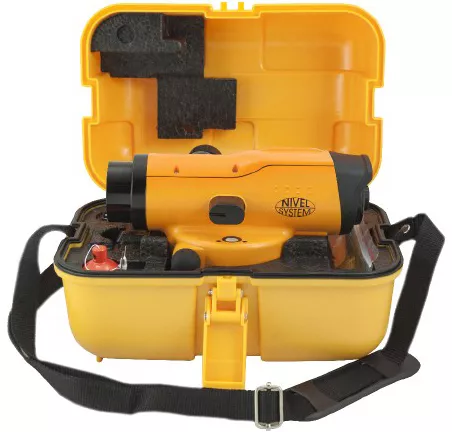

  • Transport case,
  • Manual user instructions,
  • Instrument certificate,
  • Authorized service guarantee,

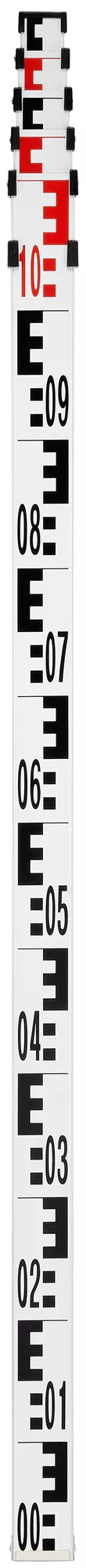

  • Nivel System TS-50 telescopic laser stave – a durable 5-piece, 5-meter levelling staff for standard measurements. Levelling vial included, clamp with metal ring, carrying case,

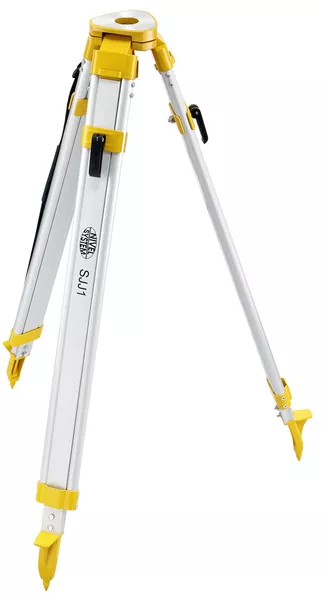

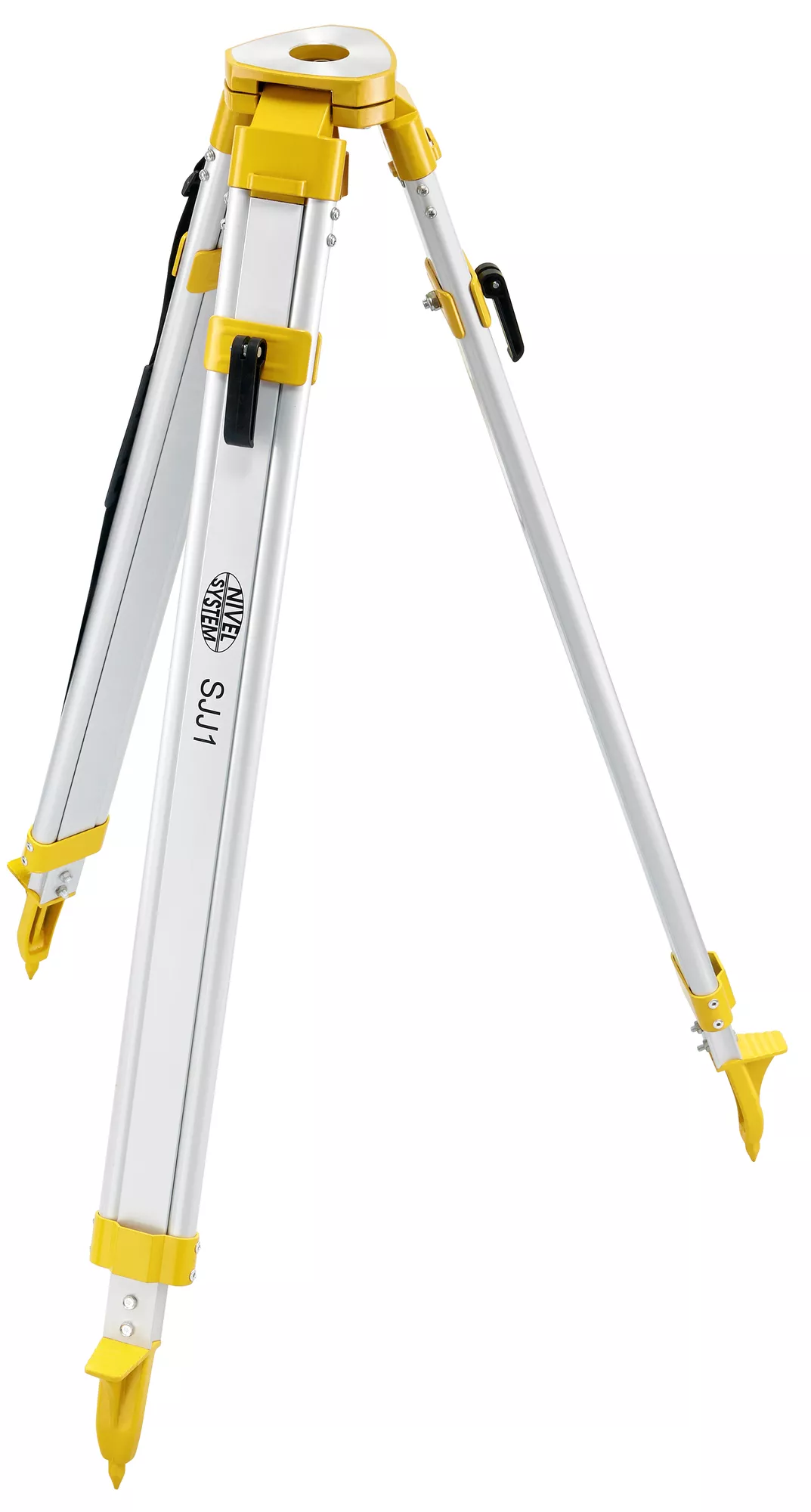

  • Aluminum Nivel System SJJ1 tripod a light tripod for clamps with a flat head. It has durable clamps blocking the tripod legs, a comfortable carrying strap on the shoulder. Feet tips made of metal provide the required stability on any surface.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
