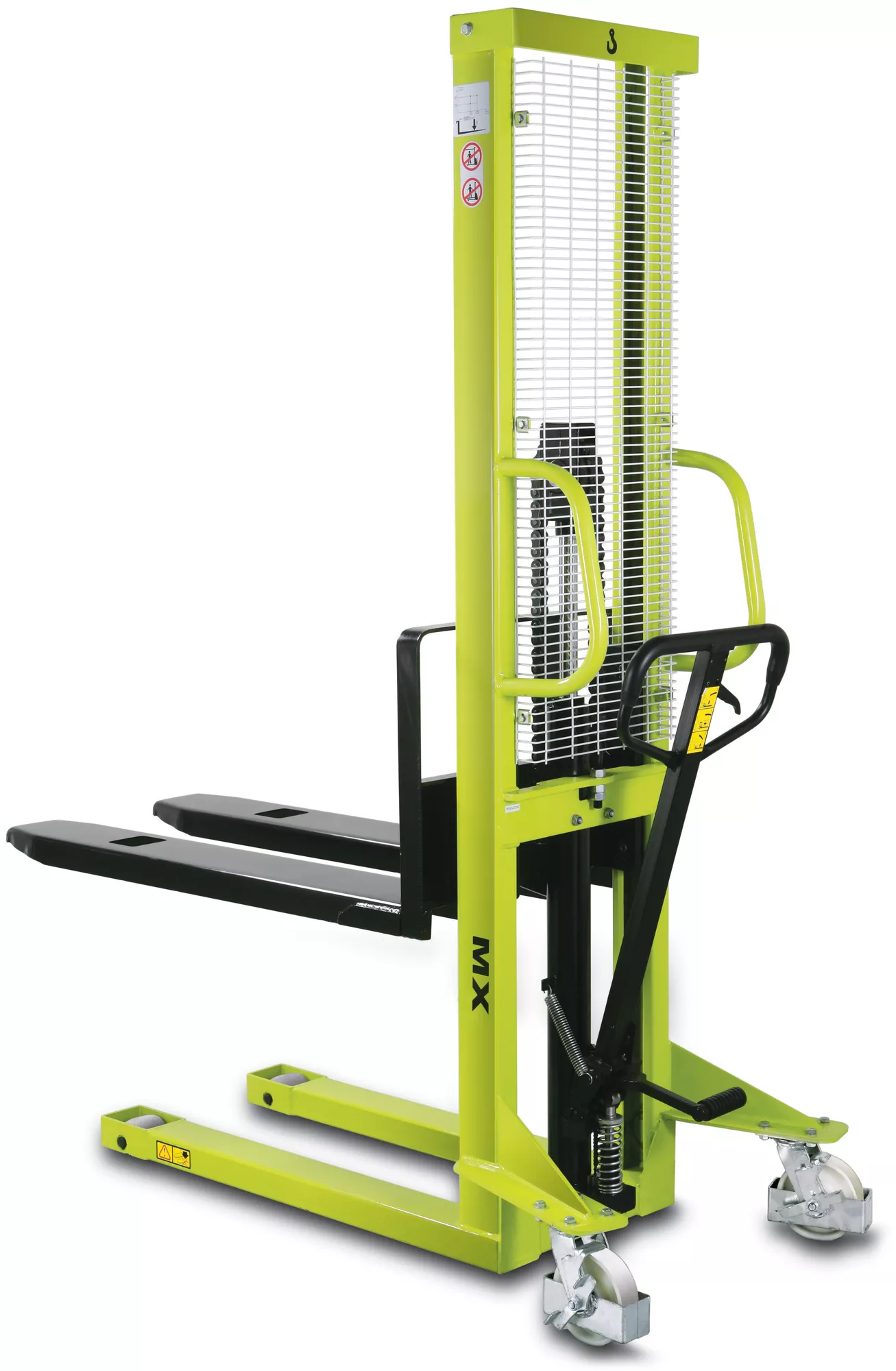

Manual stacker Lifter by Pramac MX 1016 1150x550
Catalogue number: G009106
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.The MX series is an example of a perfect compromise between price and quality. They are very durable machines with reinforced construction. Very stable forks and steel discs supported on four rollers are just some of the many advantages of these stackers. The support pedal for lifting the forks significantly reduces the operator's effort.
Variant description: Lifting height 1600 mm, load capacity 1000 kg
Technical characteristics
Total length
1690 mm
Total width
740 mm
Drive
Manual
Distance between fork arms
550 mm
Turning radius
1400 mm
Aisle width
2166 mm
Operator type
Pedestrian
Normal free lifting
1510 mm
Fork dimensions - Length
1150 mm
Fork dimensions - Width
170 mm
Head
1600 mm
Height, mast lowered
2080 mm
Load
1000 kg
advantages
- Rollers. A strong chain and big steel roller is a solution that is not afraid of working at maximum load.
- Safety valve. After exceeding the maximum allowable load, the safety valve will automatically cut off the possibility of lifting, which will protect the device against damage.
- The foot brake also functions as a parking brake.
- Shaft. The plastic drawbar cover in the MX series improves its ergonomics, making it easier to lift and carry loads. The three-position control lever (bottom, neutral, lifting) is located in a place that makes it easier to operate the stacker.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
