Laser sensor Topcon LS-B110

Topcon
Catalogue number: LS-B110
You get: 99 pts.iAccess to our Loyalty Program is available only on the Polish-language version of the store.
Gross price
2 421,84 €
2 191,76 €
Net price: 1 968,97 € 1 781,92 €
Lowest price 30 days before the discount: 2 176,72 € brutto
Availability:  Temporarily unavailable
Shipping time:  on requesti The shipping time for this product is determined individually.

Please contact Customer Service
Warranty: 1 year
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.

Related products

LS-B110

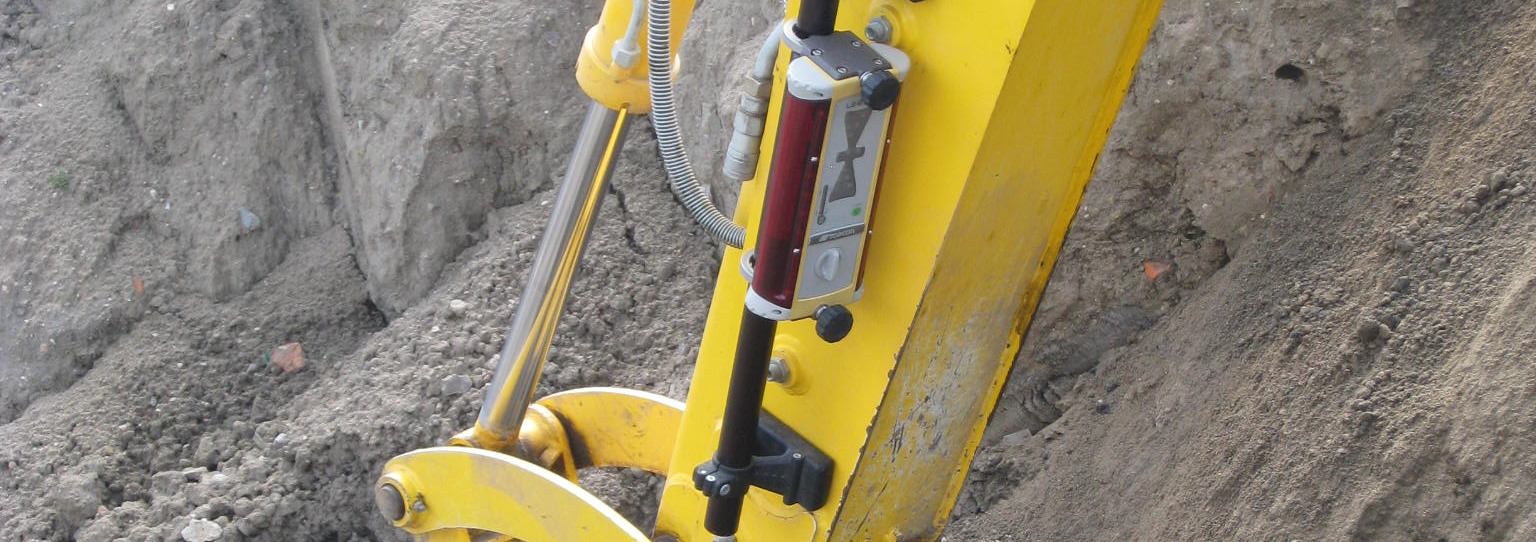

Topcon 1D laser indicator system is a very useful and affordable solution supporting the work of construction machinery. The Topcon LS-B110 excavator system consists of a shoulder-mounted sensor (battery-powered); the system is completed by a rotating laser level (purchased separately). The laser level determines the reference plane (horizontal or inclined in one or two directions). The laser sensor receives the signal from the laser level and uses LED indicators to inform the operator about the current height at which the bucket should be set. The set configured in this way allows for quick and efficient execution of earthworks without the need to perform control measurements after each pass.

Variant description: LS-B110 machine sensor

Technical characteristics

Work accuracy
3, 6, 15, 30 mm
The length of the wave received by laser
633 – 785 nm
Resistance class
IP66
Working temperature
Od -20 °C do +50 °C
Laser beam receiving range
25 cm, 360°
Power supply
DC 10V-30V (external power supply), 4x alkaline batteries or battery BT-68Q (optional) (internal power supply)
Weight
2 kg
Length x width x height
158 x 166 x 357 mm

Advantages

  • Wide range of laser beam reception (25 cm), 360 ° - greater control of the work,
  • Cooperation with Topcon 2D automatic machine control systems,
  • High work accuracy adjusted depending on the needs between four settings (from 3 mm to 30 mm),
  • Electronic level - the sensor reacts to the tilt (left-right and front-back), which makes it easier to position the sensor vertically,
  • Everything in sight - a large, legible LED display helps control the height of the blade or excavator bucket (1D systems),
  • Durable housing design with rubber corner protection and protection against glare and incorrect readings,
  • Solid mast mounting using clamps - for manual masts or a handle and for mechanical poles (purchased separately),
  • High resistance to water and dust, confirmed by class IP66,
  • Reliable, reliable equipment - made in Japan.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Laser sensor Topcon LS-B110W Pro
Laser sensor LS-B110W, the set additionally includes a magnetic holder and a wireless RD-100W receiver
Price on request
