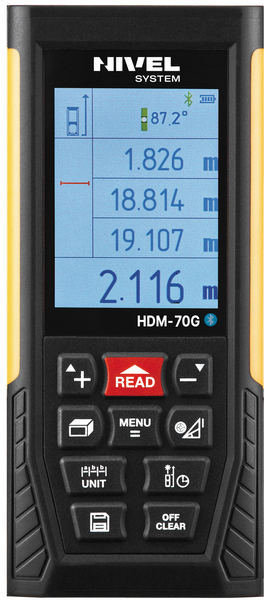

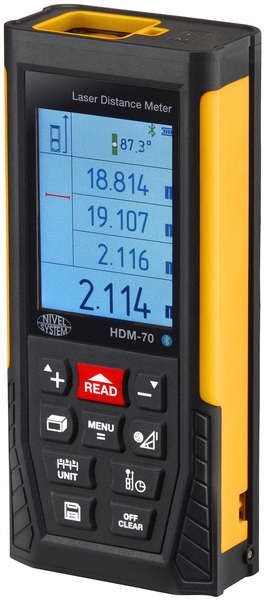

Distance meter Nivel System HDM-70

Product substitutes

Gross price

~~185,08 €~~155,16 €

Description

The HDM-70 distance meter by Nivel System is equipped with a modern processor, ensuring fast, accurate and advanced measurements. The instrument is managed through a handy panel with a large and colourful display, which presents the results of measurements and the resulting calculations. The results can be saved to the device memory and sent to a computer (USB) and mobile devices (Bluetooth). The device is a portable measuring station that allows you to get not only information about the length of the section but many other, often complex data required on the construction site and in the design office. The rangefinder fits in your pocket, is light, handy, easy to use in the field, and efficient rechargeable batteries affect comfort and economy in the operation of equipment.

Register the device on the manufacturer's website to extend the warranty from 12 to 24 months for free.

Variant description: Range 70 m

Auto laser off / auto switch off

Yes

Accuracy

+/- 2 mm

„Painter” function

Yes

Self-calibration

Yes

Pythagoras measuring

Yes

Resistance class

IP54

Laser type

Class II, <1mW, 635 nm

Level bubble

Yes, electronic

Delay measurement

Yes

Measurement memory

100

Backlight

Yes

Continuous distance measuring

Yes

Area / volume measuring

Yes

Foot (measurements in the corner)

Yes

Volume addition/subtraction

Yes

Data transmission

USB, Bluetooth

Level bubble

Yes

MAX & MIN Value

Yes

Angle of tilt

+/- 90°

Distance

70 m

Power supply

Ni-MH 3x1,2V 800 mAh

Weight

132 g

Length x width x height

130 x 57 x 30 mm

Advantages

Fast, precise and reliable measurements – an efficient and fast processor ensures high accuracy and rich functionality,
Large measurement capabilities with the option of saving and sending data to a computer – the software allows you to measure distances and based on them perform several calculations such as adding, subtracting, calculating the area and volume, the practical function of a "painter",
The ability to save data and transfer to a computer – all measurements can be saved in the device memory and sent to a computer,
Wireless terrain-office data transmission – thanks to the free application (for Apple devices) we can save the data collected in the field and quickly send it via email to the office, which will significantly speed up further work,
Creating space plans – we can create space plans, which are measured with a rangefinder - the created plan can be easily sent by email after exporting to PDF,
Clear information – a large, colourful screen with backlight displays the most important measurement data,

Measure in inaccessible places – extended Pythagoras functions allow for indirect height or width measurements, the inclinometer operating in two axes supports fieldwork,
Additional special functions – stakeout, continuous measurement / function min. - max., Measurement delay, calibration function - anything that can support the measurement work,
Working from the edge – measurements can be made from the front or base of the rangefinder and foot (for measuring in corners),
Easy to use – the measurement is done at the press of a button, and the shortcut keys accelerate access to the most frequently used functions, equipment equipped with efficient batteries,
Small and handy – they fit in every pocket, the handy housing ensures a firm grip,
Safe use for years – resistant to harsh conditions on the construction site, covered by a full warranty and post-warranty protection of an authorized Nivel System service.

Show the description

set contains

HDM-70 laser rangefinder,
Battery set,
Hand strap
Transport cover,
Software disc.

All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
