This product is no longer available (discontinued)
Are you looking for a substitute product? Contact us and we will suggest you the most suitable alternative.

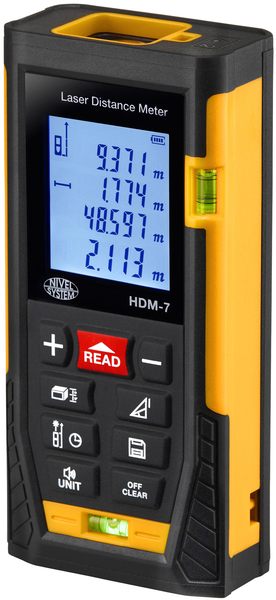

Distance meter Nivel System HDM-7 is a practical measuring tool that completely replaces the measuring tape and "measuring tape". It provides measurement accuracy (+/- 2 mm) and range unattainable for traditional tools. The highly visible laser spot makes aiming easier and special laser glasses (optional equipment) make it easier to see. The Nivel System distance meter, thanks to the internal measurement and calculation software, allows to quickly and easily determine the lengths, areas and volumes of measured objects. Additionally, thanks to Pythagoras functions, it can be used to determine the lengths of inaccessible sections. 100 measurements are saved in the instrument's memory that can be used for calculations (e.g. addition, subtraction). The rangefinder also allows continuous measurement, thanks to which you can easily get information about the minimum and maximum value of the measured section, and the stakeout function will ensure that the length of the section is postponed. It is also possible to choose a reference point - including measurements using a measuring foot (measurements in corners).
Technical characteristics
Auto laser off
20 s
Auto switch off
150 s
Weight
132 g
Accuracy
+/- 2 mm
Permissible distance
70 m
„Painter” function
Yes
Self-calibration
Yes
Pythagoras measuring
Yes
Resistance class
IP54
Laser type
Class II, <1 mW, 635 nm
Libell
Yes
Smallest unit displayed
1 mm
Delay measurement
Yes
Measurement memory
100 records
Backlight
Yes
Continuous distance measuring
Yes
Area/ volume measuring
Yes
Foot (measurements in the corner)
Yes
Volume addition/subtraction
Yes
Level bubble
Yes
MAX & MIN Value
Yes
Storage humidity
20 – 80% RH
Dimensions
118 x 54 x 28 mm
Range of storage temperatures
-20 ~ +60 °C
Working temperature range
0 ~ +40 °C
Power supply
2 x 1,5 V
Weight
132 g
Advantages
Fast, precise and reliable measurements – accuracy +/- 2 mm, measurements inside and outside,
Large measurement possibilities with the possibility of recording up to 100 values – rangefinder software allows you to measure distances and make calculations based on them (e.g. addition, subtraction, surface area, volume),
Measure in inaccessible places – Pythagoras function allows to carry out indirect height or width measurement,
Additional special functions – stakeout, continuous measurement / function min. - max., Measurement delay, calibration function - anything that can support construction work,
Working from the edge – measurements can be made from the front or base of the rangefinder and foot (for measuring in corners),
Clear information – a large screen with backlight displays the most important measurement data,
Easy to use – the measurement is done at the push of a button, and the shortcut keys speed up access to the most frequently used functions,
Small and handy – they fit in every pocket, the handy housing ensures a firm grip,
Safe use for years – resistant to harsh conditions at the construction site, covered by a full warranty and post-warranty protection of the Nivel System authorized service in Poland (TPI service).
Nivel System HDM laser rangefinders are practical measuring tools that completely replace the measuring tape and "ruler". It provides measurement accuracy (+/- 2 mm) and range unattainable for traditional tools. They are also operated by one person. The highly visible laser spot makes aiming easier and special polarized glasses (optional equipment) make it easier to see.
Nivel System rangefinders, thanks to internal measurement and calculation software, allow to quickly and easily determine the lengths, areas and volumes of measured objects. Additionally, thanks to Pythagoras functions, it can be used to determine the lengths of inaccessible sections. The last 100 measurements are saved in the instrument's memory, which can be used for calculations (e.g. addition, subtraction).
Rangefinders also enable continuous measurement, thanks to which you can easily get information about the minimum and maximum value of the measured section, and the stakeout function will ensure that the length of the section is postponed. It is also possible to choose a reference point - including measurements using a measuring foot (measurements in corners).
Comfortable operation is provided by the intuitive keyboard with function buttons for the most frequently used functions and a large, readable screen with backlight (for work in dark rooms). The accuracy of measurements provides the ability to set the rangefinder on a tripod.
Set contains
Laser distance meter HDM-7,
Case,
Hand strap,
Battery set,
Manual user instructions,
Carton box.
