Distance meter Nivel System HDM-5

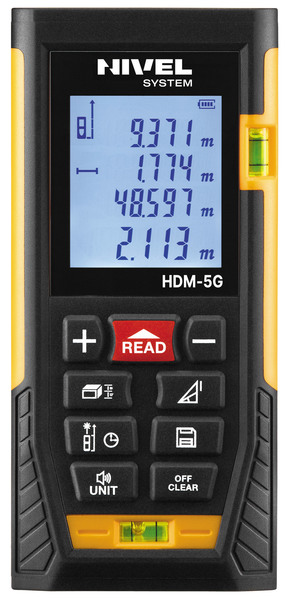

Distance meter Nivel System HDM-5G
Catalogue number: HDM-5G
EAN: 5907440786950
You get: 5 pts.iAccess to our Loyalty Program is available only on the Polish-language version of the store.
Gross price
132,33 €
Get a lower price after logging iniAccess to Customer Account is available only on the Polish-language version of the store.
Bestseller
Net price: 107,59 €
Availability: Available for order
Shipping time: ~7 daysi
The shipping time for products is indicative and subject to change.
Applies to working days from the moment of accepting the order for processing.
Delivery price (in Poland): on request
Warranty: 2 years

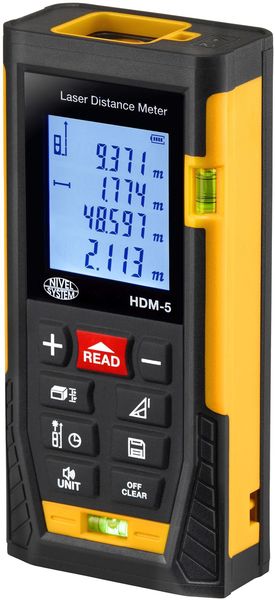

Distance meter Nivel System HDM-5
It is a practical measuring tool that completely replaces the measuring tape and "measuring tape". It provides measurement accuracy (+/- 2 mm) and range unattainable for traditional instruments. The highly visible laser spot makes aiming more comfortable, and unique laser glasses (optional equipment) make it easier to see. The rangefinder, thanks to the internal measurement and calculation software, allows to quickly and easily determine the lengths, areas and volumes of the measured objects. Additionally, thanks to Pythagoras functions, it can be used to determine the lengths of inaccessible sections. One hundred measurements are saved in the instrument's memory, which can be used for calculations (e.g. addition, subtraction). The rangefinder also allows continuous measurement, thanks to which you can easily get information about the minimum and maximum value of the measured section, and the stakeout function will ensure that the length of the section is postponed. It is also possible to choose a reference point - including measurements using a measuring foot (measures in corners).
Variant description: 50 m range
Technical characteristics
Auto laser off
20 s
Auto switch off
150 s
Accuracy
+/- 2,0 mm
Permissible distance
50 m
„Painter” function
Yes
Self-calibration
Yes
Pythagoras measuring
Yes
Resistance class
IP54
Laser type
Class II, <1 mW, 635 nm
Libell
Yes
Smallest unit displayed
1 mm
Delay measurement
Yes
Measurement memory
100 values
Backlight
Yes
Continuous distance measuring
Yes
Area/ volume measuring
Yes
Foot (measurements in the corner)
Yes
Volume addition/subtraction
Yes
Level bubble
Yes
MAX & MIN Value
Yes
Storage humidity
20 – 80% relative humidity
Dimensions
118 x 54 x 28 mm
Range of storage temperatures
-20°C ~ +60°C
Working temperature range
0°C ~ +40°C
Power supply
2 x 1,5 V
Weight
132 g
advantages
- Fast, precise and reliable measurements - accuracy +/- 2 mm, measurements inside and outside,
- Large measurement possibilities with the possibility of recording up to 100 values - rangefinder software allows you to measure distances and make calculations based on them (e.g. addition, subtraction, surface area, volume),
- Measure in inaccessible places - Pythagoras function allows to carry out indirect height or width measurement,
- Additional special functions - stakeout, continuous measurement / function min. - max., Measurement delay, calibration function - anything that can support cconstruction work,
- Working from the edge - measurements can be made from the front or base of the rangefinder and foot (for measuring in corners),
- Clear information - a large screen with backlight displays the most important measurement data,
- Easy to use - the measurement is done at the push of a button, and the shortcut keys speed up access to the most frequently used functions,
- Small and handy - they fit in every pocket, the handy housing ensures a firm grip,
- Safe use for years - resistant to harsh conditions at the construction site, covered by a full warranty and post-warranty protection of the Nivel System authorized service in Poland (TPI service).
details
- Nivel System DM manual laser rangefinders are practical measuring tools that completely replace the measuring tape and "ruler". They provide measurement accuracy (+/- 2 mm) and range unattainable for traditional tools. One person also operates them. The highly visible laser spot makes aiming more comfortable, and special polarized glasses (optional equipment) make it easier to see.
- The Nivel System rangefinders, thanks to the internal measurement and calculation software allow to quickly and easily determine the lengths, areas and volumes of the measured objects. Additionally, thanks to Pythagoras functions, it can be used to determine the lengths of inaccessible sections. The instrument's memory stores the last hundred measurements that can be used for calculations (e.g. addition, subtraction).
- Rangefinders also enable continuous measurement, thanks to which you can quickly get information about the minimum and maximum value of the measured section, and the stakeout function will ensure that the length of the section is postponed. It is also possible to choose a reference point - including measurements using a measuring foot (measures in corners).
- The intuitive keyboard provides comfortable operation with function buttons for the most frequently used functions and a large, readable screen with backlight (for work in dark rooms). The accuracy of measurements provides the ability to set the rangefinder on a tripod.
set contains
- HDM-5 distance meter,
- Case,
- Hand strap
- Battery set,
- Manual user instructions,
- Carton box.
