Multi-purpose cross laser Nivel System CL4
Catalogue number: CL4
EAN: 5907440786189
Availability: Discontinued product
Shipping time: n/ai
No shipping information for the product.
Comments: 0

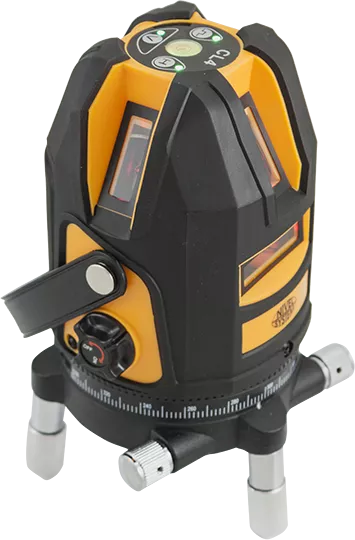

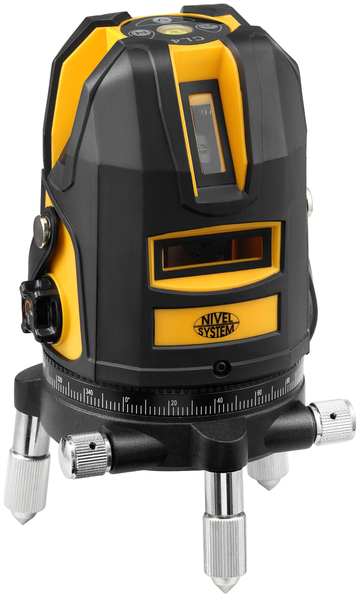

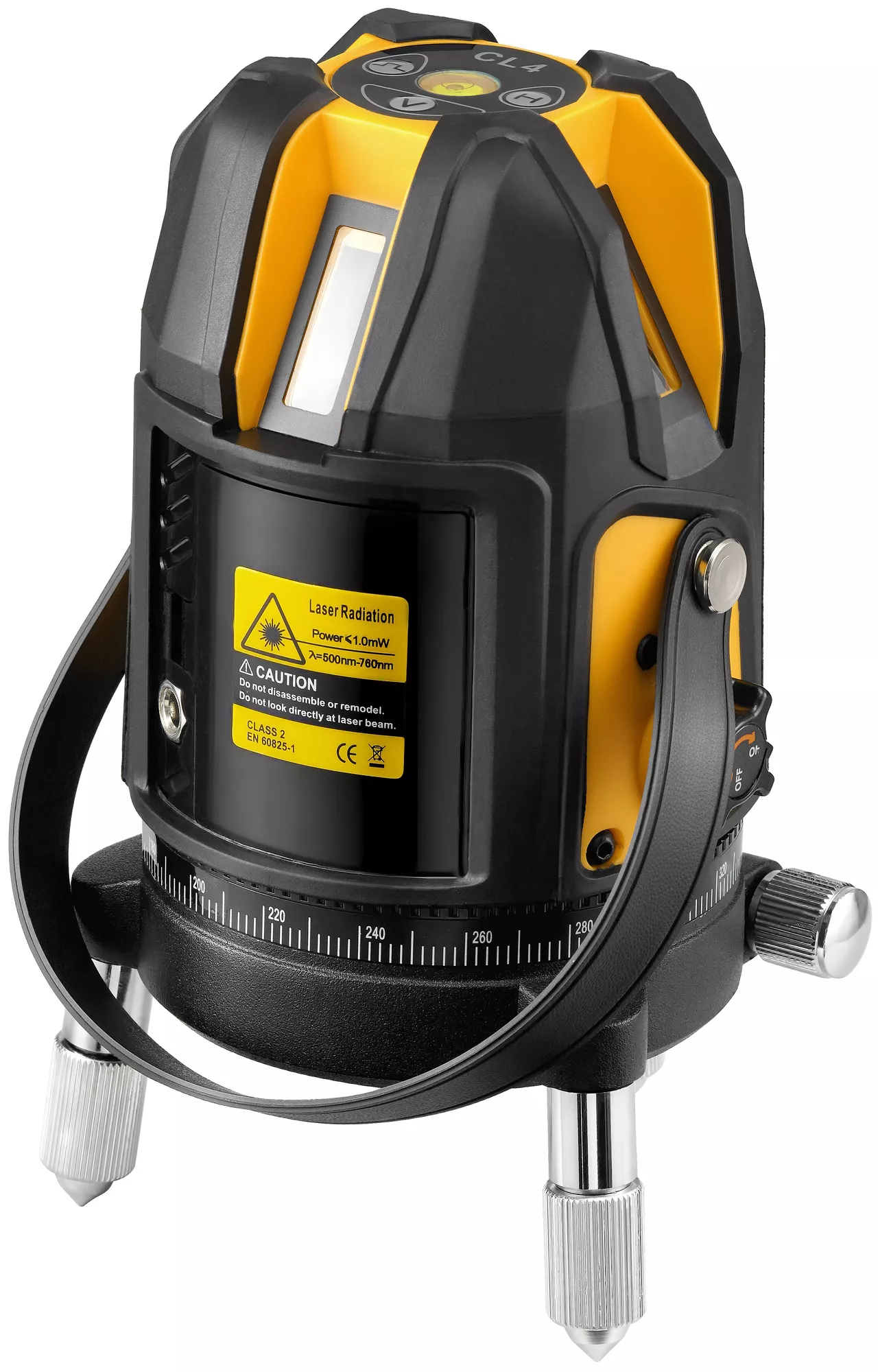

Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.The Nivel System CL4 cross multilaser is a laser that offers versatile functionality, thanks to which the equipment will perform measuring tasks both for general construction, masonry, construction works and very precise finishing works. High-quality laser optics allow for precise measurements and a bright, very well visible beam of light. The laser generates two full 360° vertical laser planes, a horizontal beam is also displayed. The CL4 is equipped with a micrometre with a horizontal wheel scale, enabling precise setting of the direction of the displayed laser beam (also by the assumed angle value). Also, the equipment has a laser plummet - which facilitates setting the laser, fitting it in perpendicular works as well as transferring points (from the floor to the ceiling, etc.).
Register the device on the manufacturer's website to extend the warranty from 12 to 24 months for free.
Variant description: Red laser beam
Technical characteristics
Accuracy
+/- 1,0 mm / 5 m
Generated surfaces
3 (2 perpendicularly, 1 horizontally)
Resistance class
IP54
Clamping (screw)
5/8''
Laser plummet
Yes (down)
Laser width
< 2,5 mm / 5 m
Laser
Red, 635 nm
Dimensions
110 x 191 mm
Work range
15 m (inside), 50 m z with laser sensor
Self-leveling range
+/- 3°
Working temperature range
-15°C to +45°C
Power supply
4,5 V (3 alkaline batteries AA)
Weight
1 kg
Advantages
- More than a precise spirit level – two mutually perpendicular full vertical planes (360°), additionally one of them intersects with a horizontal beam and forms a cross with arms crossing at an angle of 90°, for leveling, plumbing, determining and controlling right angles,
- Accuracy and reliability – high-quality optics generate laser lines that are visible even in sunny rooms, the equipment allows you to work with an accuracy of +/- 1 mm / 5 m. The micrometer allows you to precisely fit the laser beam to a given job, and the horizontal wheel scale will be used to deflecting the vertical beam angle,
- Work without moving the instrument – laser beams with very large spans around the station allow you to mark verticals and levels in rooms without having to change the position of the device often. An additional laser point allows the points to be moved horizontally without the need to turn on the vertical beam (battery saving),
- Even greater range – the pulse function allows you to work with the laser sensor outside buildings at large distances,
- Fast leveling – an innovative magnetic vibration compensation system ensures quick preparation of the device for work, the laser stably marks the beam, even on an unstable base, and after blocking it allows you to work with oblique beams,

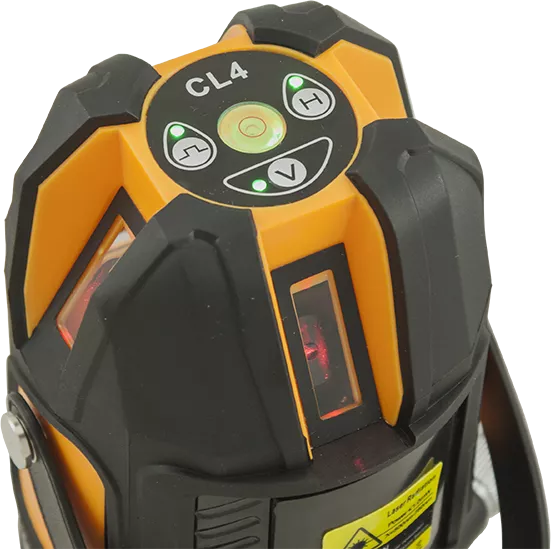

- Intuitive operation – one-button level control – turn on and measure,
- Resistant to damage and durable equipment – rubber components of the laser housing, protect it from damage due to shocks and shocks, equipment resistant to dust and water (IP54).
Details
- Multilaser CL4 is a precise, easy-to-use and reliable measurement tool. The laser marks four reference beams vertically (two full 360° planes around the laser) and a horizontal beam in front of the laser. These bundles can be turned on or off as needed. Also, CL4 sets the laser plumb down, which allows you to position the laser at the desired point or move points up / down during assembly work. Also, a point is determined on the horizontal beam, thanks to which the equipment allows the points to be moved horizontally without the need to turn on the vertical beam (battery saving). The equipment is dedicated to all general construction and finishing works - both internal and external, and for all who are looking for branded equipment at an extremely affordable price. The range of the laser can be increased thanks to the laser sensor, which is offered as an accessory. The laser sensor can be mounted on a laser patch - thanks to which we obtain a set for measuring height differences in the field (classic levelling).
- The laser is equipped with a micrometre (on both sides of the laser - this is also a convenience for left-handed people), with which we can position the vertical laser beam precisely. The pitch of the horizontal wheel makes it practical to measure and determine the angle of the mounted structure elements. Like other Nivel System lasers, this cross multilaser is also characterized by high resistance to harsh operating conditions and stability (magnetic compensator eliminates vibrations during operation, ensures quick levelling, the laser is ready to work immediately after switching on).

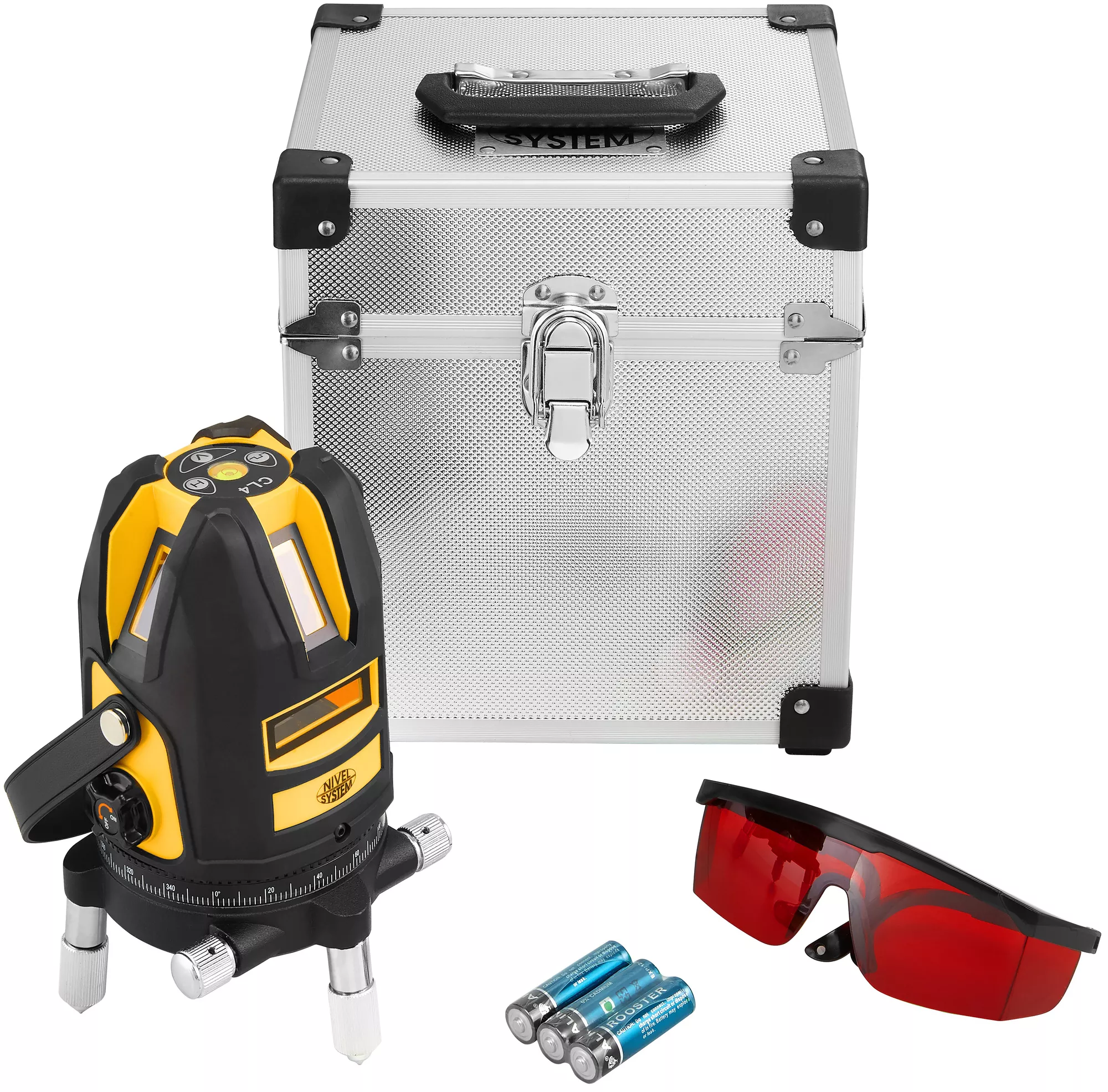

Set contains
- CL4 cross laser
- A disk
- Batteries
- Transport case
- Authorized service guarantee
Multitask cross multilaser
The film presents the advantages of the cross multilaser CL4.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
