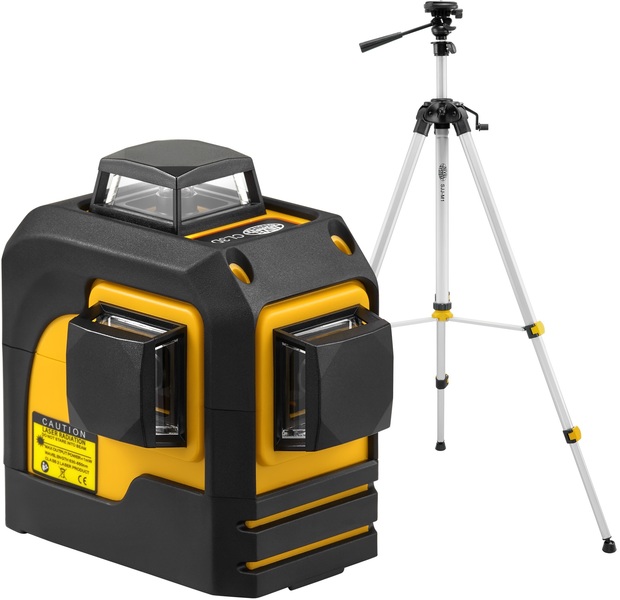

Multi-purpose cross laser Nivel System CL3D (+ tripod)

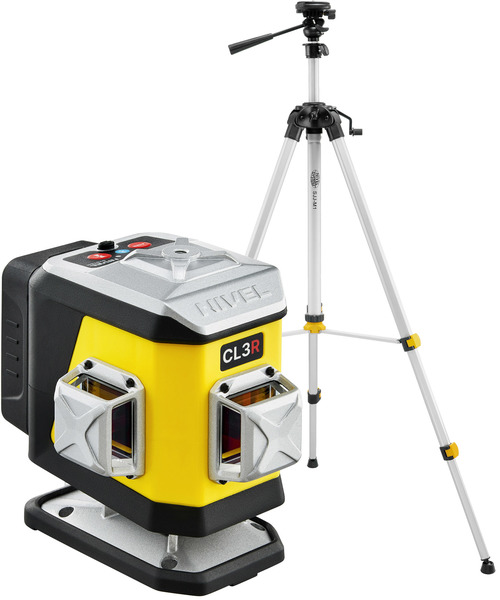

Multi-purpose cross laser Nivel System CL3R (+ tripod SJJ-M1 EX)

Catalogue number: CL3D [zestaw1]
You get: 12 pts.iAccess to our Loyalty Program is available only on the Polish-language version of the store.
Availability:  Discontinued product
Shipping time:  n/ai No shipping information for the product.
This product is no longer available (discontinued)

Are you looking for a substitute product? Contact us and we will suggest you the most suitable alternative.
Comments: 0
Add comment
Catalogue number: CL3R [zestaw2]
EAN: 5908263351042
You get: 12 pts.iAccess to our Loyalty Program is available only on the Polish-language version of the store.
Gross price
385,01 €
352,28 €
Get a lower price after logging iniAccess to Customer Account is available only on the Polish-language version of the store.
Net price: 286,41 €
Availability:  In stock
Shipping time:  24hi Orders are shipped within 24 hours of accepting the order for processing.
Delivery price (in Poland): on request
Warranty: 2 years

The Nivel System CL3D is a multi-purpose cross laser. The equipment sets perfectly smooth reference lines on the wall (horizontal and vertical), which support all finishing and general construction work. The laser has three laser heads, thanks to which the user can work with three laser planes - in the range of 360° each. The simultaneous display allows you to specify the right angle, which is useful, e.g. in tiling works. Blocking the compensator means that the instrument can be tilted and use diagonal lines. Built-in 1/4" threads allow for secure and stable mounting of the device on a tripod, adapter or laser shelf. Reinforced rubber elements of the laser housing protect against damage due to shocks and shocks.

Register the device on the manufacturer's website to extend the warranty from 12 to 24 months for free.

Variant description: Red laser beam, the set includes a SJJ-M1 EX tripod

Technical characteristics

+/- 2 mm / 10 m
Generated surfaces
1 x horizontally (360°), 2 x vertical (360°)
Resistance class
Clamping (screw)
Red beam, 635nm, laser class II
Self-leveling range
+/- 3.5°
Storage temperature range
-20°C ~ +60°C
Working temperature range
-10°C ~ +50°C
Work range
20 m (60 m with sensor)
0,8 kg
Length x width x height
115 x 68 x 107 mm


  • Accuracy and reliability – the clear beam of the red laser guarantees comfortable work in all conditions. The equipment allows working with an accuracy of +/- 1 mm / 5 m,
  • Even greater range – the pulse function allows you to work with the laser sensor outside buildings at large distances,
  • Precise beam display – bright, red laser beam and high-quality optics generate lines that are very clearly visible,
  • Versatility and multitasking – three laser planes (360°), control of construction works in 3D,
  • Fast levelling – an innovative magnetic vibration compensation system ensures quick preparation of the device for work, the laser stably sets the beam, even on an unstable base, and after blocking it allows you to work with oblique beams,
  • Intuitive operation – one-button level control - turn on and measure,
  • Laser adapter – secure attachment even under challenging conditions on the construction site, additionally adjustable at a given height,
  • Resistant to damage and durable equipment – rubber components of the laser housing, protect it from damage due to shocks and shocks, equipment resistant to dust and water (IP54).


  • Easy and quick measurements – after switching on, the CL3D multilaser levels itself and is ready for use immediately. The generated red laser beam is very well visible, displayed on the wall creates a reference line for horizontal or vertical works.
  • Universal use – the equipment enables work with both horizontal and vertical bundles. Three planes can be displayed all together.
  • Reliable on the construction site – the equipment is resistant to dust and water (IP54). Also, the laser body has been strengthened, making it durable and works well in difficult conditions at the construction site.
  • Comfortable operation – CL3D has an intuitive control panel. Function management, including precise beam fitting, is quick and efficient. The whole is complemented by a compact housing, thanks to which the laser is handy, easy to install on-site and during transport.

set contains

  • CL3D cross laser,
  • CL-BR adapter,
  • Laser shield,
  • Batteries,
  • Transport case,
  • Authorized service guarantee,
  • Nivel System SJJ-M1 EX crank tripod – a stable, aluminium device for work in all conditions with a maximum height of 1.82 m. Included with the 3D adapter.

Durable and resistant equipment

The film presents the advantages of the CL3D cross multilaser.
