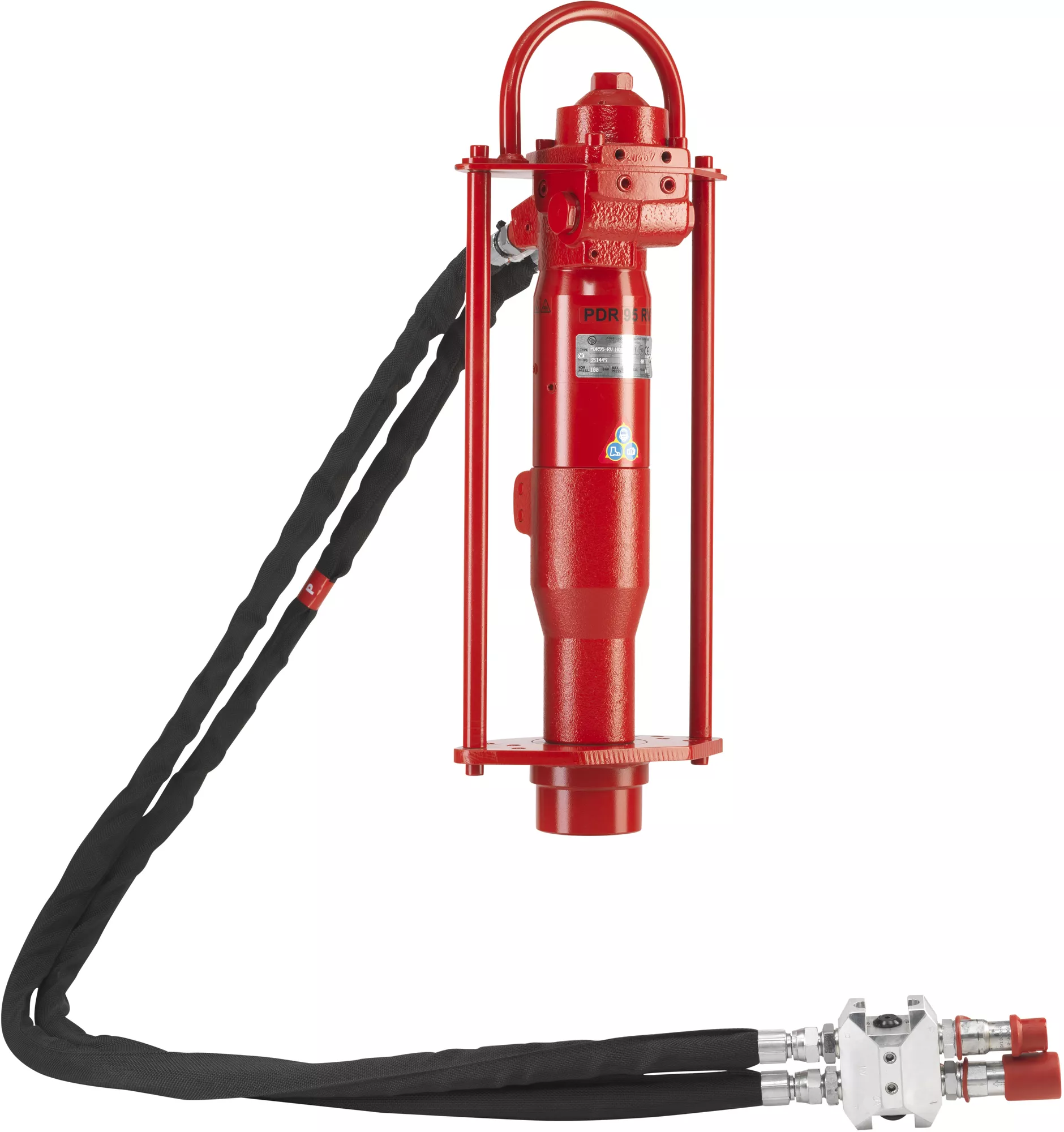

Hydraulic post driver Chicago Pneumatic PDR 95 RV

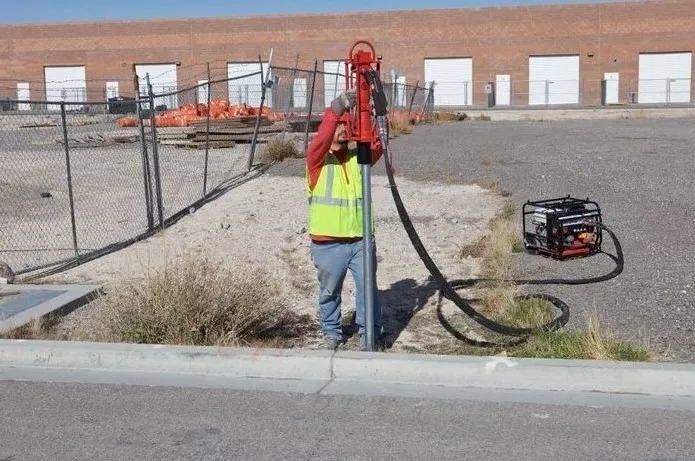

Chicago Pneumatic PDR 95 RV is a hydraulic post driver designed for driving various types of elements into the ground, such as posts for road signs and signposts, wooden piles and steel sections. For high columns, the CP hydraulic pile driver is lifted together with the column. No other uses are allowed.

It is equally effective for steel and wooden poles. Using a system of plug-in adapters, the pile driver can be adapted in a few seconds to support profiles with a maximum diameter of 150 mm. Pile adapters are designed so that the beater hits them directly for maximum hammering force. The PDR 95 RV pile driver is equipped with a control valve mounted on a 2 m long hose for remote control when driving high poles. PDR 95 RV with remote control valve can be used in hydraulic systems with the open or closed flow in a neutral position. The PDR 95 is a heavy-duty pile driver.

Variant description: Remote valve, maximum pressure 160 bar, oil flow 28 - 40 l/min
